Part Number: TS914









Description: The TS914 is a RAIL TO RAIL quad CMOS operational amplifier designed to operate with a single or dual supply voltage...


Urgent Purchase

TS914 General Description


The TS914 is a RAIL TO RAIL quad CMOS operational amplifier designed to operate with a single or dual supply voltage.

The input voltage range Vicm includes the two supply rails VCC + and VCC -The output reaches :
• VCC - +50mV VCC + -50mV with RL = 10kW
• VCC - +350mV VCC + -350mV with RL = 600W

This product offers a broad supply voltage operating range from 2.7V to 16V and a supply current of only 200mA/amp. (VCC = 3V).

Source and sink output current capability is typically 40mA (at VCC = 3V), fixed by an internal limitation circuit.
STMicroelectronics is offering a dual op-amp with the same features : TS912.

TS914 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - (note 1)
18
V
Vid
 Differential Input Voltage - (note 2)
±18
V
Vi
 Input Voltage - (note 3)
-0.3 to 18
V
Iin
 Current on Inputs
±50
mA
Io
 Current on Outputs
±130
mA
Toper
 Operating Free Air Temperature Range
TS912I/AI/BI
-40 to +125
Tstg
 Storage Temperature
-65 to +150
Notes :
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.

TS914 Features

`RAIL TO RAIL INPUT AND OUTPUT .VOLTAGERANGES
`SINGLE (OR DUAL) SUPPLY OPERATION .FROM 2.7V TO 16V
`EXTREMELYLOW INPUT BIAS CURRENT : .1pA TYP .
`LOWINPUT OFFSET VOLTAGE : 5mVmax. .
`SPECIFIED FOR 600W AND 100 LOADS
`LOW SUPPLYCURRENT : 200mA/Ampli
`.SPICEMACROMODEL INCLUDED IN THIS SPECIFICATION

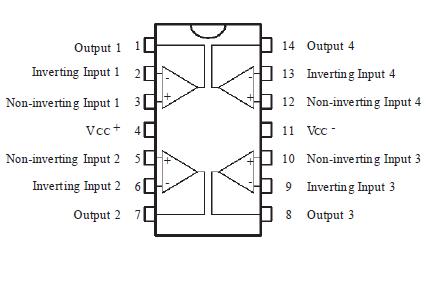

TS914 Connection Diagram

TS914 Connection Diagram

TS914 datasheet

TS914
PDF/DataSheet Download

  • Datasheet: TS914
  • File Size: 104453 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
