Part Number: TS921









Description: The TS921 is a RAIL TO RAIL single BiCMOS operational amplifier optimized and fully specified for 3V a...


Urgent Purchase

TS921 General Description


The TS921 is a RAIL TO RAIL single BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation.

High output current allows low load impedances to be driven.

The TS921exhibitsa very low noise, low distortion, low offsetand high ouput current capabilitymaking this device an excellent choice for high quality, low
voltage or battery operated audio systems. The device is stable for capacitive loads up to 500pF.

TS921 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply Voltage - (note 1)
12
V
Vid
 Differential Input Voltage - (note 2)
±1
V
Vi
 Input Voltage - (note 3)
-0.3 to 14
V
Toper
 Operating Free Air Temperature Range
-40 to +125
mA
Tstg
 Storage Temperature
-65 to +150
mA
Tj
 Maximum Junction Temperature
150
Output Short Circuit Duration
see note 4
Notes :
1. All voltage values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC + +0.3V.
4. Short-circuits can cause excessive heating.

TS921 Features

`RAIL TO RAIL INPUT AND OUTPUT .
`LOWNOISE : 9nV( HZ ) .
`LOWDISTORTION HIGH OUTPUT CURRENT : 80mA .(able to drive 32 loads) .
`HIGH SPEED : 4MHz, 1.3V/s .OPERATINGFROM 2.7V to 12V .
`ESD INTERNAL PROTECTION : 1.5KV .
`LATCH-UP IMMUNITY MACROMODEL
`INCLUDED IN THIS SPECIFICATION

TS921 Typical Application

·headphoneamplifier .
·piezoelectric speaker driver .
·sound cards, multimedia systems .
·line driver, actuator driver .
·servo amplifier
·mobile phone and portablecommunication .sets
·instrumentation with low noise as a key factor

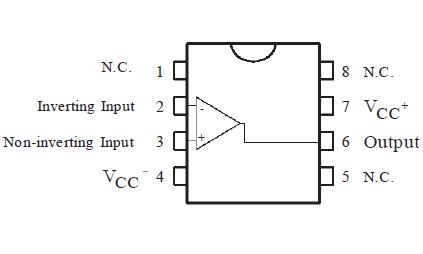

TS921 Connection Diagram

TS921 Connection Diagram

TS921 datasheet

TS921
PDF/DataSheet Download

  • Datasheet: TS921
  • File Size: 118502 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
