Five Points

Part Number: TS934



MFG: STM

Package Cooled: SMD

D/C: 04+

Description: The TS93x (Single, Dual & Quad) is Operational Amplifier able to operate with voltage as low as 2....


Urgent Purchase

TS934 General Description


The TS93x (Single, Dual & Quad) is Operational Amplifier able to operate with voltage as low as 2.7V and to reach 2.9Vpp of output swing with RL = 100k when supplied @ 3V. Offering a typical consumption of only 20mA, it is particularly well-suited for every kind of battery-supplied applications.

The TS93x is housed in the space-saving 5 pins SOT23-5 package which simplifies the board design because of the ability to be placed everywhere (outside dimensions are : 2.8mm x 2.9mm).

TS934 Maximum Ratings

Symbol
 Parameter
Value
Unit
VCC
 Supply voltage 1)
12
V
Vid
 Differential Input Voltage 2)
±12
V
Vin
 Input Voltage Range 3)
-0.3 to 12.3
V
Toper
 Operating Free Air Temperature Range
-40 to + 85
Tstd
 Storage Temperature Range
-65 to +150
Tj
 Maximum Junction Temperature
150
Rthjc
 Thermal Resistance Junction to Case 4)
SOT23-5
DIP8
DIP14
SO8
SO14
TSSOP8
TSSOP14
81
42
32
28
22
26
21
/W
Rthjc
 Thermal Resistance Junction to Ambient - SOT23-5
256
/W
ESD
 Human Body Model
2
KV
  Latch-up Immunity
Class A
  Lead Temperature (soldering, 10sec)
260
1. All voltages values, except differential voltage are with respect to network terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.

TS934 Features

· RAIL TO RAIL OUTPUT VOLTAGE SWING
·MICROPOWER CONSUMPTION (20mA)
· SINGLE SUPPLY OPERATION (2.7V to 10V
· LOW OFFSET (2mV max for TS93xB)
· CMOS INPUTS
· ULTRA LOW INPUT BIAS CURRENT (1pA)
· ESD PROTECTION (2kV)
· LATCH-UP IMMUNITY (Class A)
· AVAILABLE IN SOT23-5 MICROPACKAGE

TS934 Typical Application

· Battery-powered systems
· Portable communication systems
· Alarm, smoke detectors
· Instrumentation & sensoring
· PH Meter
· Digital scales

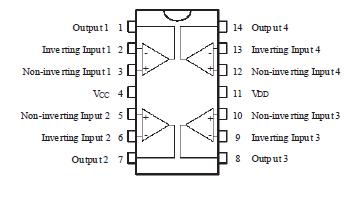

TS934 Connection Diagram

TS934 Connection Diagram

TS934 datasheet

TS934
PDF/DataSheet Download

  • Datasheet: TS934
  • File Size: 132213 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
