Purchase TS952, In-stock TS952 From SeekIC.
Part Number: TS952
Description: The TS95x family are RAIL TO RAIL BiCMOS operational amplifiers optimized and fully specified for 3V a...
- Table of contents:
TS952
-
Suppliers
DataSheet
General Description
TS952 General Description
The TS95x family are RAIL TO RAIL BiCMOS operational amplifiers optimized and fully specified for 3V and 5V operation.
The TS951 is housed in the space-saving 5 pins SOT23 package that makes it well suited for battery- powered systems. This micropackage simplifies the PC board design because of it's ability to be placed in tight spaces (outside dimensions are : 2.8mmx 2.9mm)
TS952 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
Supply Voltage - note 1 |
12 |
V |
|
Vid |
Differential Input Voltage - note 2 |
±1 |
V |
|
Vin |
Input Voltage Range - note 3 |
-0.3 to 12.3 |
V |
|
Toper |
Operating Free Air Temperature Range |
-40 to +125 |
|
|
Tstg |
Storage Temperature Range |
-65 to +150 |
|
|
Tj |
Maximum Junction Temperation |
150 |
|
|
Rthjc |
Thermal Resistance Junction to Case - note 4 SOT23-5 SO8 SO14 TSSOP8 TSSOP14 |
81 28 22 26 21 |
/W |
|
Rthja |
Thermal Resistance Junction to Ambient - SOT23-5 |
256 |
/W |
|
ESD |
Human Body Model |
2 |
kV |
| Lead Temperature (soldering, 10sec) |
260 |
1. All voltages values, except differential voltage are with respect to network ground terminal.
2. Differential voltages are non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of input and output voltages must never exceed VCC +0.3V.
4. Short-circuits can cause excessive heating and destructive dissipation.
TS952 Features
·RAIL TO RAIL INPUT COMMON-MODE .VOLTAGERANGE .
·RAIL TO RAIL OUTPUT VOLTAGESWING .
·OPERATINGFROM 2.7V to 12V .
·HIGH SPEED (3MHz, 1V/ms) .
·LOWCONSUMPTION (0.9mA@ 3V) .
·SUPPLYVOLTAGE REJECTION RATIO : 80dB .
·ESD PROTECTION (2kV) .
·LATCH-UP IMMUNITY
· AVAILABLEIN SOT23-5 MICROPACKAGE
·RAIL TO RAIL OUTPUT VOLTAGESWING .
·OPERATINGFROM 2.7V to 12V .
·HIGH SPEED (3MHz, 1V/ms) .
·LOWCONSUMPTION (0.9mA@ 3V) .
·SUPPLYVOLTAGE REJECTION RATIO : 80dB .
·ESD PROTECTION (2kV) .
·LATCH-UP IMMUNITY
· AVAILABLEIN SOT23-5 MICROPACKAGE
TS952 Typical Application
·Set-top boxes .
·Laptop/Notebookcomputers .
·Transformer/Line drivers .
·Personal entertainments (CD players) .
·Portable communication (cell phones, pagers) .
·Instrumentation & sensoring .
·Digital to Analogconverter buffers
·Portable headphone speaker drivers
·Laptop/Notebookcomputers .
·Transformer/Line drivers .
·Personal entertainments (CD players) .
·Portable communication (cell phones, pagers) .
·Instrumentation & sensoring .
·Digital to Analogconverter buffers
·Portable headphone speaker drivers

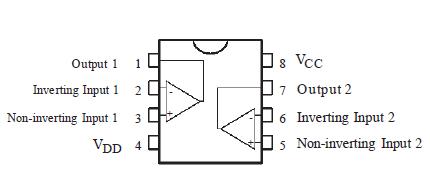

TS952 Connection Diagram
TS952
