TSA1203
-
Suppliers
DataSheet
General Description
TSA1203 General Description
The TSA1203 is a new generation of high speed, dual-channel Analog to Digital converter processed in a mainstream 0.25m CMOS technology yielding high performances and very low power consumption.
The TSA1203 is specifically designed for applications requiring very low noise floor, high SFDR and good isolation between channels. It is based on a pipeline structure and digital error correction to provide high static linearity at Fs=40Msps, and Fin=10MHz.
For each channel, a voltage reference is integrated to simplify the design and minimize external components. It is nevertheless possible to use the circuit with external references.
Each ADC outputs are multiplexed in a common bus with small number of pins. A tri-state capability is available for the outputs, allowing chip selection. The inputs of the ADC must be differentially
driven.
The TSA1203 is available in extended (0 to +85°C) temperature range, in a small 48 pins TQFP package.
TSA1203 Maximum Ratings
|
Symbol |
Parameter |
Values |
Unit |
|
AVCC |
Analog Supply voltage 1) |
0 to 3.3 |
V |
|
DVCC |
Digital Supply voltage 1) |
0 to 3.3 |
V |
|
VCCBE |
Digital buffer Supply voltage 1) |
0 to 3.6 |
V |
|
VCCBI |
Digital buffer Supply voltage 1) |
0 to 3.3 |
V |
|
IDout |
Digital output current |
-100 to 100 |
mA |
|
Tstg |
Storage temperature |
+150 |
°C |
|
ESD |
HBM: Human Body Model2) CDM: Charged Device Model3) |
2 1.5 |
KV |
| Latch-up | Class4) |
A |
and output voltages must not exceed -0.3V or VCC
2). ElectroStatic Discharge pulse (ESD pulse) simulating a human body discharge of 100 pF through 1.5k
3). Discharge to Ground of a device that has been previously charged.
4). Corporate ST Microelectronics procedure number 0018695
TSA1203 Features
· Low power consumption: 230mW@40Msps
·Single supply voltage: 2.5V Independent supply for CMOS output stage with 2.5V/3.3V capability
·SFDR= -68.3 dBc @ Fin=10MHz
· 1GHz analog bandwidth Track-and-Hold
· Common clocking between channels
·Dual simultaneous Sample and Hold inputs
· Multiplexed outputs
· Built-in reference voltage with external bias capability
·Single supply voltage: 2.5V Independent supply for CMOS output stage with 2.5V/3.3V capability
·SFDR= -68.3 dBc @ Fin=10MHz
· 1GHz analog bandwidth Track-and-Hold
· Common clocking between channels
·Dual simultaneous Sample and Hold inputs
· Multiplexed outputs
· Built-in reference voltage with external bias capability
TSA1203 Typical Application
· Medical imaging and ultrasound
· 3G basestation
· I/Q signal processing applications
· High speed data acquisition system
· Portable instrumentation
· 3G basestation
· I/Q signal processing applications
· High speed data acquisition system
· Portable instrumentation

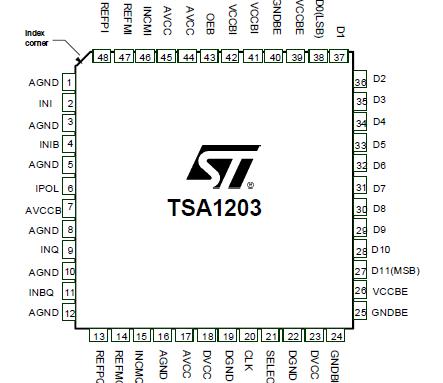

TSA1203 Connection Diagram
TSA1203
PDF/DataSheet Download
- Datasheet: TSA1203
- File Size: 500544 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
