Part Number: TSC2100

Package Cooled: 355

D/C: 04+

Description: The TSC2100 is a highly integrated touch screen controller with on-chip processor and audio codec. The touch screen por...

TSC2100 General Description

The TSC2100 is a highly integrated touch screen controller with on-chip processor and audio codec. The touch screen portion of the TSC2100 contains a 12-bit 4-wire resistive touch screen ADC complete with drivers, and interfaces to the host controller through a standard SPI™ serial interface. The on-chip processor provides extensive features specifically designed to reduce host processor and bus overhead, with capabilities that include fully automated operating modes, programmable conversion resolution up to 12 bits, programmable sampling rates up to 125 kHz, programmable conversion averaging, and programmable on-chip timing generation.

The TSC2100 includes a high-performance audio codec with 16/20/24/32-bit 97-dB stereo playback, mono record functionality at up to 48 ksps. A microphone input includes built-in preamp and hardware automatic gain control, with single-ended or fully-differential input capability. The dual output drivers on the TSC2100 can be programmed for low or high power drive for optimized power saving capability. The drivers can function as a stereo line-level output, a stereo headphone amplifier with capless or ac-coupled configurations, or a bridge-terminated speaker driver, delivering up to 325 mW into an 8- load. A programmable digital audio effects processor enables bass, treble, midrange, or equalization playback processing. The digital audio data format is programmable to work with popular audio standard protocols (I²S, DSP, Left/Right Justified) in master or slave mode, and also includes an on-chip programmable PLL for flexible clock generation capability. Highly configurable software power control is provided, enabling stereo audio playback at 48 ksps at 11 mW with a 3.3-V analog supply level.

The TSC2100 offers a 12-bit measurement ADC and internal reference voltage, as well as two battery measurement inputs capable of reading battery voltages up to 6 V, while operating at an analog supply as low as 2.7 V. It includes an on-chip temperature sensor capable of reading 0.3°C resolution. The TSC2100 is available in a 32 lead TSSOP and a 32 lead QFN.

TSC2100 Maximum Ratings

		UNITS
AVDD to AVSS		−0.3 V to 3.9 V
DRVDD to DRVSS		−0.3 V to 3.9 V
IOVDD to DVSS		−0.3 V to 3.9 V
DVDD to DVSS		−0.3 V to 2.5 V
AVDD to DRVDD		−0.1 V to 0.1 V
AVSS to DRVSS to DVSS		−0.1 V to 0.1 V
Analog inputs (except VBAT1 and VBAT2) to AVSS		−0.3 V to AVDD + 0.3 V
VBAT1 / VBAT2 to AVSS		−0.3 V to 6 V
Digital input voltage to DVSS		−0.3 V to IOVDD + 0.3 V
Operating temperature range		−40°C to 85°C
Storage temperature range		−65°C to 105°C
Junction temperature (TJ Max)		105°C
TSSOP package	Power dissipation	(T_JMax − T_A)/_JA
	_JA Thermal impedance	86°C/W
QFN package	Power dissipation	(T_JMax − T_A)/_JA
	_JA Thermal impedance	123°C/W
Lead temperature	Soldering vapor phase (60 sec)	215°C
	Infrared (15 sec)	220°C

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) If the TSC2100 QFN version is used to drive high power levels to an 8- load for extended intervals at ambient temperatures above 70°C, multiple vias should be used to electrically and thermally connect the thermal pad on the QFN package to an internal heat-dissipating ground plane on the user's PCB.
(3) The TSC2100 TSSOP version provides full output power into an 8- load at ambient temperatures of 70°C and below. TI does not recommend using the TSC2100 TSSOP version to drive high power levels to an 8- load for extended intervals at ambient temperatures above 70°C. All other device functionality, including driving of stereo 16- loads at full volume, is supported up to 85°C.

TSC2100 Features

Integrated Touch Screen Processor With Fully Automated Modes of Operation
Programmable Converter Resolution, Speed, and Averaging
Programmable Autonomous Timing Control
Direct Battery Measurement Accepts up to 6-V Input
On-Chip Temperature Measurement
Stereo Audio DAC and Mono Audio ADC Support Rates up to 48 ksps
High Quality 97-dB Stereo Audio
Integrated PLL for Flexible Audio Clock Generation
Programmable Digital Audio Bass/Treble/EQ/De-Emphasis
On-Chip 325-mW, 8- Speaker Driver
Stereo Headphone Amplifier With Capless Output Option
Microphone Preamp and Hardware Automatic Gain Control
SPI™ and I²S™ Serial Interface
Full Power-Down Control
Low Power: 11-mW Stereo Audio Playback At 48 ksps
32-Pin TSSOP and 32-Pin 5*5 mm QFN Package

TSC2100 Typical Application

Personal Digital Assistants
Smart Cellular Phones
MP3 Players

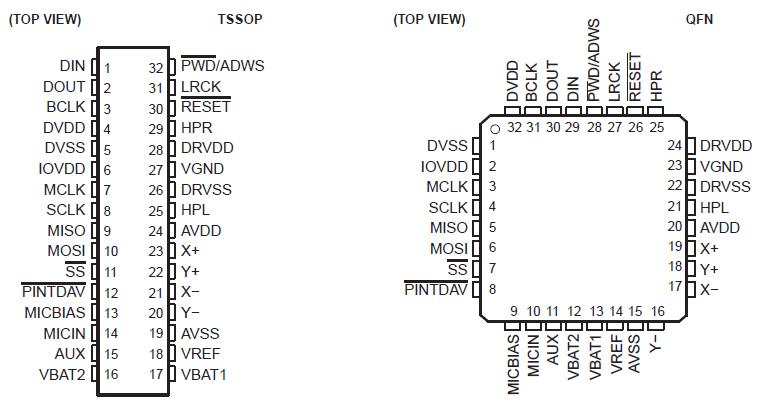

TSC2100 Connection Diagram
