TVP5020

Features: • NTSC (M) and PAL (B, D, G, H, I, M, N) composite video• Two analog video inputs for up to two composite inputs• Single built-in-analog signal processing channels with clamping and AGC• Single high speed 8-bit A/D converter• Patented architecture for lockin...

product image

TVP5020 Picture
See larger image
SeekIC No. : 004533927 Detail

TVP5020: Features: • NTSC (M) and PAL (B, D, G, H, I, M, N) composite video• Two analog video inputs for up to two composite inputs• Single built-in-analog signal processing channels with c...

TVP5020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP5020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• NTSC (M) and PAL (B, D, G, H, I, M, N) composite video
• Two analog video inputs for up to two composite inputs
• Single built-in-analog signal processing channels with clamping and AGC
• Single high speed 8-bit A/D converter
• Patented architecture for locking to weak, noisy, or unstable signals
• Comb filters for both cross-color and cross-luminance noise reductions
• Line locked clock and sampling
• Programmable data rates:
  12.2727 MHz square-pixel (NTSC)
  14.7500 MHz square-pixel (PAL)
  13.5 MHz ITU-R BT.601 (NTSC and PAL)
• Programmable output formats: 16-bit or 8-bit 4:2:2 YCbCr, 12-Bit 4:1:1 YCbCr and ITU-R BT.656 with embedded syncs
• Teletext (NABTS, WST) and closed caption decode with FIFO
• ITU-R BT.601 or extended coding range
• Programmable host port options including I2C, VMI (3 modes), and VIP
• 80-terminal TQFP package


Application

• Digital image processing
• Video conferencing
• Multimedia
• Digital video
• Desktop video
• Video capture
• Video editing


Pinout

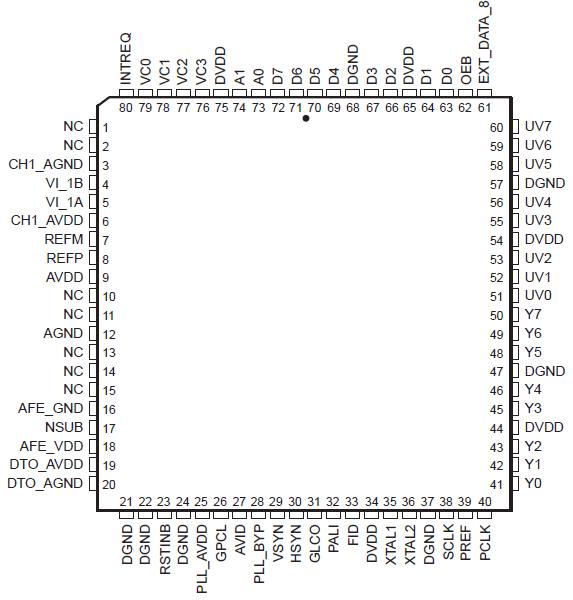

Connection Diagram


Specifications

Supply voltage , AVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
Supply voltage, DVDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.6 V
Input voltage range, AVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 7 V
Input voltage range, DVI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to DVDD + 0.3 V
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  65°C to 150°C
Operating free-air temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0°C to 70°C
Total power dissipation (Watts) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 W
