TVP5150A

Features: • Accepts NTSC (M, 4.43), PAL (B, D, G, H, I, M, N), and SECAM (B, D, G, K, K1, L) video data• Supports ITU-R BT.601 standard sampling• High-speed 9-bit ADC• Two composite inputs or one S-video input• Fully differential CMOS analog preprocessing channels wit...

product image

TVP5150A Picture
See larger image
SeekIC No. : 004533935 Detail

TVP5150A: Features: • Accepts NTSC (M, 4.43), PAL (B, D, G, H, I, M, N), and SECAM (B, D, G, K, K1, L) video data• Supports ITU-R BT.601 standard sampling• High-speed 9-bit ADC• Two co...

TVP5150A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP5150A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Accepts NTSC (M, 4.43), PAL (B, D, G, H, I, M, N), and SECAM (B, D, G, K, K1, L) video data
• Supports ITU-R BT.601 standard sampling
• High-speed 9-bit ADC
• Two composite inputs or one S-video input
• Fully differential CMOS analog preprocessing channels with clamping and automatic gain control (AGC) for best signal-to-noise (S/N) performance
• Ultralow power consumption: 115 mW typical
• 32-pin TQFP package
• Power-down mode: <1 mW
• Brightness, contrast, saturation, hue, and sharpness control through I2C
• Complementary 4-line (3-H delay) adaptive comb filters for both cross-luminance and cross-chrominance noise reduction
• Patented architecture for locking to weak, noisy, or unstable signals
• Single 14.31818-MHz crystal for all standards
• Internal phase-locked loop (PLL) for line-locked clock and sampling
• Subcarrier Genlock output for synchronizing color subcarrier of external encoder
• Standard programmable video output format:
  − ITU-R BT.656, 8-bit 4:2:2 with embedded syncs
  − 8-bit 4:2:2 with discrete syncs
• Macrovision copy protection detection
• Advanced programmable video output formats:
  − 2x oversampled raw VBI data during active video
  − Sliced VBI data during horizontal blanking or active video
• VBI modes supported
  − Teletext (NABTS, WST)
  − Closed-caption decode with FIFO, and extended data services (EDS)
  − Wide screen signaling, video program system, CGMS, vertical interval time code
  − Gemstar 1x/2x electronic program guide compatible mode
  − Custom configuration mode that allows the user to program the slice engine for unique VBI data signals
• Power-on reset


Application

• Digital television
• PDA
• Notebook PCs
• Cell phones
• Video recorder/players
• Internet appliances/web pads
• Handheld games


Pinout

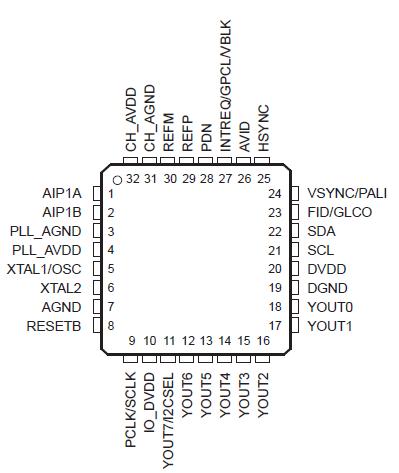

Connection Diagram


Specifications

Supply voltage range: IO_DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.5 V
                                    DVDD to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 2.3 V
                                    PLL_AVDD to PLL_AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 2.3 V
                                    CH_AVDD to CH_AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 2.3 V
Digital input voltage range, VI to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.5 V to 4.5 V
Input voltage range, XTAL1 to PLL_GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 2.3 V
Analog input voltage range AI to CH_AGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .−0.2 V to 2.0 V
Digital output voltage range, VO to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 4.5 V
Operating free-air temperature, TA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0°C to 70°C
Storage temperature, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C
