TVP9900

Features: · ATSC 8-VSB Demodulation and FEC · Host Interrupt for Remote Monitoring of Signal· ITU-J.83B Compliant 64/256 QAM Quality Demodulation and FEC · SNR Monitor· Direct 44-MHz IF Sampling Eliminates Need for · BER Monitor External Downconverter · Integrated De-Interleaver RAM· Integrated IF...

product image

TVP9900 Picture
See larger image
SeekIC No. : 004533942 Detail

TVP9900: Features: · ATSC 8-VSB Demodulation and FEC · Host Interrupt for Remote Monitoring of Signal· ITU-J.83B Compliant 64/256 QAM Quality Demodulation and FEC · SNR Monitor· Direct 44-MHz IF Sampling Eli...

TVP9900 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TVP9900
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· ATSC 8-VSB Demodulation and FEC
· Host Interrupt for Remote Monitoring of Signal
· ITU-J.83B Compliant 64/256 QAM Quality Demodulation and FEC
· SNR Monitor
· Direct 44-MHz IF Sampling Eliminates Need for
· BER Monitor External Downconverter
· Integrated De-Interleaver RAM
· Integrated IF PGA
· Parallel/Serial MPEG Output Interface With
· Integrated High-Speed 10-bit A/D Converter Error Packet Indicator
· Integrated Digital Filter Relaxes External Tuner
· Direct Tuner Control Interface Filters
· EIA/CEA-909 Antenna Control Interface
· Sigma-Delta DAC for AGC Control
· Option for 4-MHz Clock Input Driven by MOP
· Adjacent Channel Filter IC in Tuner, So No Quartz Crystal Required for
· NTSC Co-Channel Rejection Filter Demodulator
· All Digital Timing Recovery
· External DAC and VCXO for Clock Recovery Not Required
· Pilot Tracking Loop With Lock Status Indicator Signal
· Equalizer Covers Echo Profile Required by ATSC A.74 Guideline
· Decision-Directed Carrier Phase Tracking Loop
· Superior Multipath Performance Demodulating for Brazil Ensembles A Through E
· Field and Segment Synchronization With Sync Status Indicator Signal
· Power-Down Mode
· 80-Pin TQFP Package


Pinout

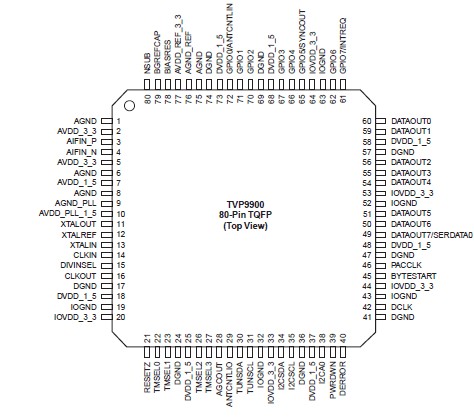

Connection Diagram


Specifications

DVDD_1_5 Supply voltage range
1.5 V digital core supply
0.5 V to 2.1 V
IOVDD_3_3 Supply voltage range
3.3 V IO cell supply
0.5 V to 4.2 V
AVDD_1_5 Supply voltage range
1.5 V analog core supply
0.5 V to 2.1 V
AVDD_3_3 Supply voltage range
3.3 V analog core supply
0.5 V to 4.2 V
AVDD_REF_3_3 Supply voltage range
3.3 V reference supply
0.5 V to 4.2 V
AVDD_PLL_1_5 Supply voltage range
1.5 V PLL supply
0.5 V to 2.1 V
VI Input voltage range
XTALIN, oscillator input
0.5 V to AVDD_PLL_1_5 + 0.5 V
Fail-safe LVCMOS
0.5 V to IOVDD_3_3 + 0.5 V
Differential IF inputs: AIFIN_P, AIFIN_N
0.5 V to AVDD_3_3 + 0.5 V
VO Output voltage range
XTALOUT, oscillator output
0.5 V to AVDD_PLL_1_5 + 0.5 V
Fail-safe LVCMOS
0.5 V to IOVDD_3_3 + 0.5 V
IIK Input clamp current
VI < 0 or VI > VCC
±20 mA
IOK Output clamp current
VO < 0 or VO > VCC
±20 mA
TA Operating free-air temperature range
0°C to 70°C
Tstg Storage temperature range
65°C to 150°C

1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
