Product Details

Description



Features:

·Output current capability and the number of outputs : 60 mA x 16 outputs
·Constant current range : Iout = 2 to 50 mA
·Application output voltage : Vout (on)=< 4.0V
·For anode common LED
·Input signal voltage level : TTL Level (Shmitt Triggered Input)
·Power supply voltage range : VDD=4.5 to 5.5V
·Maximum output terminal : voltage VOUT(off)=17V
·Data transfer clock : fCLK=20 MHz (cascade connection)
·Operation temperature range : Topr = -40 to 85 degrees
·Package : P-SSOP30-300-0.65
·Adjustment functions : ( Input 128 times clock and serial-data.)
   6-bit dot current correction :

This function corrects the current value of each output from 0% to 100% in 64 steps


Pinout

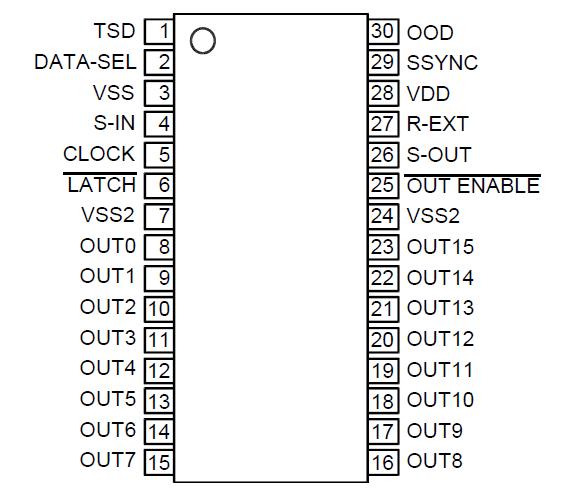

Connection Diagram


Specifications

DC characteristic
Symbol
Rating
Unit
Notes
Supply voltage
VDD
-0.3 to 6
V
Constant current output voltage
VO
-0.3 to 17
V
Output current
IOUT
+ 60
mA/bit
Logic output voltage
VOUT
-0.3 to VDD
V
Logic input voltage
VIN
-0.3 to VDD+0.3
V
VSS2 current in total
IVSS2
960
mA
All other Max Ratings are based on Max VSS2 current. If IVSS2 is less than IVSS2 Max, all other ratings may change
Power dissipation
Pd
1.25
W
On PCB. No wind.
110 *
Saturation heat resistance of
package
Rth(j-a)
90 **
degree/ W
On PCB. Wind upper 1.0m/sec. This is reference value.
Rth(j-c)
40** max
Operating temperature
Topr
-40 to 85
degree
This is reference value.
Storage temperature
Tstg
-55 to 150
degree

Note 14 :
* Subtract 9.0 mW/degree from the maximum rating value about 1º if operation temperature exceeds 25º when on PCB with dimension
   : 50 x 50 x 1.6mm Cu40%.
Note 15 :
** This is reference value.
The actual value varies greatly depending on the mounting condition. We recommend measuring to obtain accurate results.




Description

The TB62727FN is an LED-driver suitable for lighting single-color and full-color LED modules and panels. TB62727FN contains a built-in dot current-correction for each output as well as TSD (Thermal Shutdown Detection) and OOD (Output Open Detection).
