Features:

Speech Circuit
· Adjustable dc characteristic
· Symmetrical input of microphone amplifier
· Receiving amplifier for dynamic or piezo-electric earpieces
· Automatic line-loss compensation
· Selectable flashing duration by key pad
· Pause function
· Last number redial up to 32 digits
· Standard low-cost 3.58-MHz crystal or ceramic resonator

Dialer
· DTMF / pulse switchable
· Pulse dialing 66/33 or 60/40 for 10 ppS and 20 ppS or DTMF dialing selectable by pins
· Key tone

Tone Ringer
· Two-tone ringer
· Adjustable volume
· RC oscillator
· Adjustable threshold

Pinout

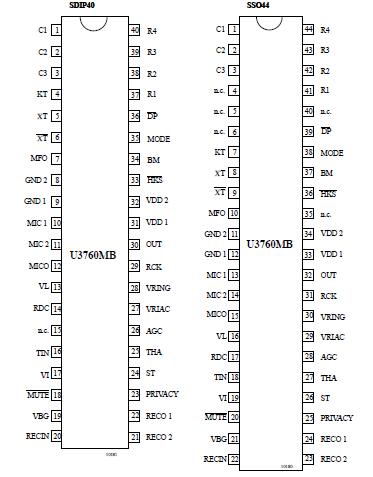

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Line current	I_L	140	mA
DC line voltage	V_L	14	V
Junction temperature	T_j	+125	°C
Ambient temperature	T_amb	25 to +75	°C
Storage temperature	T_stg	55 to +150	°C
Total power dissipation, T_amb = 60°C SSO44 SDIP40	P_tot	0.9	W
Total power dissipation, T_amb = 60°C SSO44 SDIP40	P_tot	1.3	W
Junction ambient SSO44 SDIP40	R_thJA	70	K/W
Junction ambient SSO44 SDIP40	R_thJA	50	K/W

Description

TEMIC's low-voltage telephone circuit, U3760MB, performs all the speech and line interface functions required in an electronic telephone set tone ringer, pulse and DTMF dialing with redial. Electrostatic sensitive U3760MB. Observe precautions for handling.
