Features:

· PLL intercarrier-mixer for all FM standards (incl. NICAM sound system)
· High grade signal processing for FM/NICAM sound systems
· Also suitable as AM-demodulator
· Gain controlled wideband amplifier
· AGC operates as a peak- and mean-level detector
· High input sensitivity
· Wide supply voltage range (6.8 V up to 13 V)
· Low power consumption
· ESD protection


Pinout

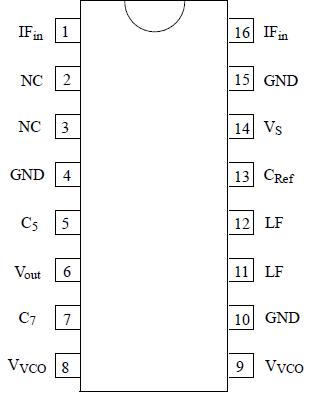

Connection Diagram


Specifications

Reference point Pin 4, unless otherwise specified
Parametrs
Symbol
Value
Unit
Supply voltage Pin14
VS
6.8to13.0
V
Supply current Pin14
IS
55
mA
Output current Pin6
Iout
5.0
mA
Maximum power dissipation
P
720
mW
Junction temperature
Tj
+125



Description

The U4454B quasi-split-sound processor is a bipolar integrated circuit for all FM-TV standards and NICAM sound systems. For FM/NICAM the IC operates as QSS-mixer. In case of AM sound the circuit can be used as AM  demodulator.
