Product Details

Description

Features:

• Debounce Time: 0.3 ms to 6 s
• RC Oscillator Determines Switching Characteristics
• Relay Driver with Z-diode
• Debounced Input for Toggle Switch
• Three Debounced Inputs: ON, OFF and TOGGLE
• Load-dump Protection
• RF Interference Protection
• Protection According to ISO/TR7637-1 (VDE 0839)

Pinout

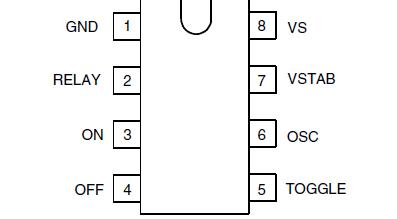

Connection Diagram

Specifications

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Parameters	Symbol	Value	Unit
Operating voltage, static, 5 minutes	V_Batt	24	V
Ambient temperature range	T_amb	-40to+125
Storage temperature range	T_stg	-55to+125
Junction temperature	T_j	150

Description

The bipolar integrated circuit U6032B is designed as a toggle switch. The device,which has a defined power-on status, can be used to control electrical loads, for example,fog lamps, high/low beam or heated windows for automotive applications.
