Product Details

Description

Features:

· Low supply voltage 3.6 V typical (min. 2.7 V)
· High power added efficiency (typ. 40%)
· Low power consumption in receive mode
· Power down control pin for low noise amplifier
· Gain control of power amplifier
· Low noise amplifier
· Optional high output power 50 mW @ 5 V supply voltage
· SSO20 plastic package

Pinout

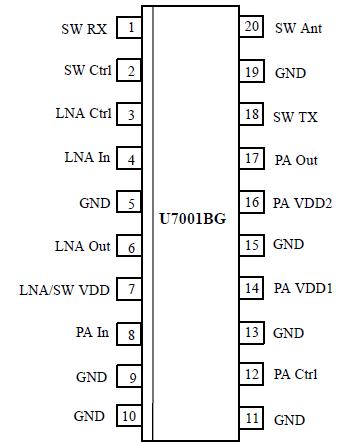

Connection Diagram

Specifications

Parameters	Symbol	Value	Unit
Supply voltages Pins7,14and 216	V_DD	+7	V
Input voltages Pins4,8and20	V_i	0toVDD	V
Control voltages Pins2,3 and 12	V_C	0toVDD	V
Channel temperature	T_ch	125
Storage temperature range	T_stg	-40to+125

Description

U7001BG is a monolithic GaAs transmit/ receive front end with power amplifier, low noise amplifier and antenna switch. U7001BG is specially designed for operation in CT2 band and suitable for a frequency range of 839 MHz to 952 MHz with external matching.
