U8600B

Features:

Single + 5 V power supply
Data transfer rates up to 16 Mb/s
Servo system
  High bandwidth: 100 MHz
  High dc gain: 110 dB
  High LD drive current: typ. 100 mA, max. 180 mA
  High slew rate: 5 ns rise/ fall time
  Servo gain adjustable
Noise reduction by servo loop and weak highfrequency modulation
On-chip generation of power levels for read, erase, and write operations
On-chip generation of write and off-pulse widths: 15 to 90 ns, 5 ns steps
Digital control of power and pulse parameters via a serial 3-wire interface
Basic power level adjustable
Supervision of power supply, laser current and laser power
Laser shutdown to prevent laser damage and data loss

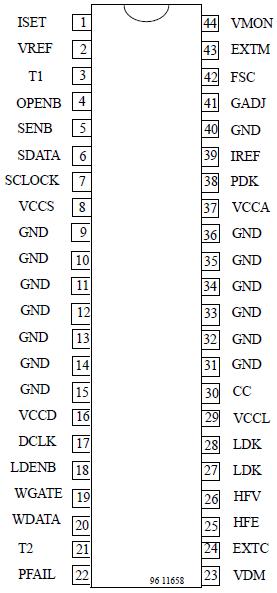

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply voltage	VCC	0.5 to +6.0	V
Supply voltage differences	VCC	± 0.1	V
Input voltage at any input	Vin	0.5 to VCC +0.5	V
LD drive current	I(LDK)	200	mA
Power dissipation	Pmax	1	W
Junction temperature	Tj	125	°C
Storage temperature range	Tstg	65 to +125	°C

Description

The U8600B is a monolithic integrated circuit using TEMIC's advanced UHF technology. The IC is a very high-speed, mixedsignal laser driver circuit for re-writable optical systems.

U8600B comprises a servo amplifier to drive the laser diode, a high-frequency modulator for noise reduction, power and pulse-width generators as well as several operation control and safety functions.
