Description



Features:

RF RX (double superheterodyne FM receiver)
· Integrated Low Noise Amplifier (LNA) with programmable gain and input impedance
· 1st mixer with external filter at 10.7 MHz
· 2nd mixer with external filter at 455 or 450 kHz (depending on country application)
· FM detector including a fully integrated IF limiter, a wide-band PLL and a Received Signal Strength Indicator (RSSI) output
· Carrier Detector (CD) with programmable threshold.
RF TX
· Buffer driving an internal Power Amplifier (PA) with programmable gain
· Narrow-band PLL including VCO
· Data transmission summing operational amplifier.
Synthesizer
· 10.24 or 11.15 MHz crystal reference oscillator (LO2) and reference frequency divider
· Programmable TX VCO with phase detector and frequency divider
· Programmable RX VCO (LO1) with phase detector and frequency divider
· Programmable clock divider with output buffer to drive the microcontroller.
Baseband RX section
· Programmable RX gain
· Expander
· Fully integrated earpiece amplifier with fixed gain.
Baseband TX section
· Microphone amplifier
· Compressor
· Programmable TX gain.
Microcontroller interface
· 3-wire serial interface.
Other features
· Voltage regulator to supply internal PLLs and the microcontroller
· Programmable low-battery detector time multiplexed with RSSI carrier detector.


Application

· World-wide analog cordless telephone set (CT0).


Pinout

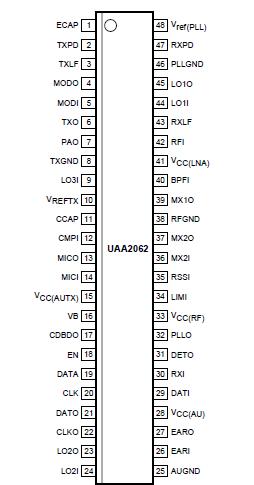

Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VCC
 supply voltage
-0.3
+6.0
V
Tstg
 storage temperature
-55
+125
°C
Tamb
 ambient temperature
-10
+70
°C



Description

The UAA2062 is a BiCMOS integrated circuit that performs all functions from the antenna to the microcontroller for reception and transmission for both the base station and the handset in a cordless telephone.

UAA2062 integrates most of the functions required for a cordless telephone into a single integrated circuit. The  implemented programming enables the UAA2062 to be used for the CT0 standard in many countries. Additionally, the implemented programming significantly reduces the amount of external components, board space requirements and external adjustments.
