UAA2080

Features: · Wide frequency range: VHF, UHF and 900 MHz bands· High sensitivity· High dynamic range· Electronically adjustable filters on chip· Suitable for data rates up to 2400 bits/s· Wide frequency offset and deviation range· Fully POCSAG compatible FSK receiver· Power on/off mode selectable by...

product image

UAA2080 Picture
See larger image
SeekIC No. : 004535205 Detail

UAA2080: Features: · Wide frequency range: VHF, UHF and 900 MHz bands· High sensitivity· High dynamic range· Electronically adjustable filters on chip· Suitable for data rates up to 2400 bits/s· Wide frequen...

UAA2080 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UAA2080
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Wide frequency range: VHF, UHF and 900 MHz bands
· High sensitivity
· High dynamic range
· Electronically adjustable filters on chip
· Suitable for data rates up to 2400 bits/s
· Wide frequency offset and deviation range
· Fully POCSAG compatible FSK receiver
· Power on/off mode selectable by the chip enable input
· Low supply voltage; low power consumption
· High integration level
· Interfaces directly to the PCA5000A, PCF5001 and PCD5003 POCSAG decoders.


Application

· Wide area paging
· On-site paging
· Telemetry
· RF security systems
· Low bit-rate wireless data links.


Pinout

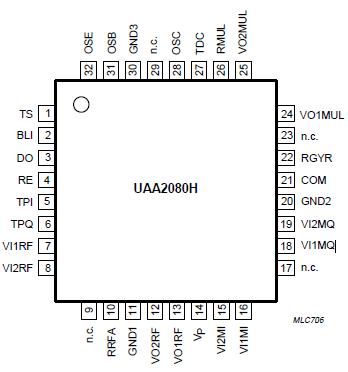

Connection Diagram


Specifications

Ground pins GND1, GND2 and GND3 connected together.
SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VP
 digital supply voltage
-0.3
+8.0
V
Ves

electrostatic handling (note 1)
pins VI1RF and VI2RF
pin RRFA
pins VO1RF and VO2RF
pins VP and OSB
pins OSC and OSE
other pins
-1500
-500
-2000
-500
-2000
-2000
+2000
+2000
+250
+500
+500
+2000
V
V
V
V
V
V
Tstg
 storage temperature
-55
+80
°C
Tamb
 ambient ambient temperature
-10
+150
°C
Note
1. Equivalent to discharging a 100 pF capacitor via a 1.5 k resistor.


Description

The UAA2080 is a high-performance low-power radio receiver circuit primarily intended for VHF, UHF and 900 MHz pager receivers for wide area digital paging systems, employing direct FM non-return-to-zero (NRZ) frequency shift keying (FSK).

The receiver design UAA2080 is based on the direct conversion principle where the input signal is mixed directly down to the baseband by a local oscillator on the signal frequency.Two complete signal paths with signals of 90° phase difference are required to demodulate the signal.All channel selectivity is provided by the built-in IF filters.The circuit UAA2080 makes extensive use of on-chip capacitors to minimize the number of external components.

The UAA2080 was designed to operate together with the PCA5000A, PCF5001 or PCD5003 POCSAG decoders,which contain a digital input filter for optimum call success rate.
