UAA4713

Features: ·50/ 60 Hz AC SUPPLY·INPUT FOR PYROELECTRICAL SENSOR·INPUT FOR PHOTORESISTIVE SENSOR·SENSORFILTER AMPLIFIER·PROGRAMMABLE ON-TIMER·TRIAC OUTPUT AND RELAY OUTPUT·SHORT CIRCUIT PROTECTION·LOW QUIESCENT CURRENT·TWO-WIRE TECHNIQUEPinoutSpecifications Symbol Parameter Test Condi...

product image

UAA4713 Picture
See larger image
SeekIC No. : 004535222 Detail

UAA4713: Features: ·50/ 60 Hz AC SUPPLY·INPUT FOR PYROELECTRICAL SENSOR·INPUT FOR PHOTORESISTIVE SENSOR·SENSORFILTER AMPLIFIER·PROGRAMMABLE ON-TIMER·TRIAC OUTPUT AND RELAY OUTPUT·SHORT CIRCUIT PROTECTION·LOW...

UAA4713 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UAA4713
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·50/ 60 Hz AC SUPPLY
·INPUT FOR PYROELECTRICAL SENSOR
·INPUT FOR PHOTORESISTIVE SENSOR
·SENSORFILTER AMPLIFIER
·PROGRAMMABLE ON-TIMER
·TRIAC OUTPUT AND RELAY OUTPUT
·SHORT CIRCUIT PROTECTION
·LOW QUIESCENT CURRENT
·TWO-WIRE TECHNIQUE


Pinout

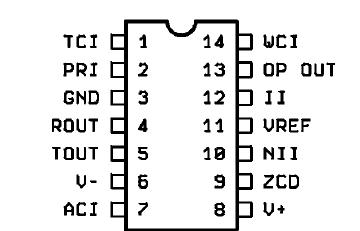

Connection Diagram


Specifications

Symbol
Parameter
Test Conditions
Unit
I7
 AC Supply Current
60
mA
I7
 Peak Current (T.P < 200ms)
200
mA
I7
 Sourge Current (not repetitive 10ms)
500
mA
I9
 ZCD Max. Input Current
5
mA
V6-3
 Negative Clamp Voltage
-9
V
V8-3
 Positive Clamp Voltage
9.5
V
V14-3
 Comp. Input Voltage
±8
V
V10-12
 Differential Input Voltage
±8
V
TOP
 Operating Temperature
-25to85
°C
Tstg,Tj
 Junction and Storage Temperature
-40to150
°C
Ptot
 Total Power Dissipation (Tj= 85°C)
650
mW



Description

The UAA4713 is a monolithic integrated circuit intended to control triac or relay switch for ACmains timer applications.The UAA4713 can be used in a wide range of industrial and consumer applications as light control, automatic door opening detector, fire alarm, fluid level control .

The UAA4713 processes the output signal of an infrared pyroelectric detector which senses temperature changes caused by heat radiation of the human body.

If the sensor detects a temperature change, a programmable timer UAA4713 will start and switch a lamp or other loads to the mains.

A further input for a photo-resistive sensor allows to program circuit operation depending on the day-light intensity. Internal circuits of UAA4713 avoid false triggering of the external actuators. (see functional diagram).
