UAC 355xB

Features: · single-chip, USB specification 2.0-compliant, stereo audio A/D and D/A converter· supports 8/16-bit mono/stereo recording and up to 24-bit playback· supports streaming of compressed audio (Dolby Digital, MP3) to external decoder· Vendor Identification and Device Configuration with exte...

product image

UAC 355xB Picture
See larger image
SeekIC No. : 004535223 Detail

UAC 355xB: Features: · single-chip, USB specification 2.0-compliant, stereo audio A/D and D/A converter· supports 8/16-bit mono/stereo recording and up to 24-bit playback· supports streaming of compressed audi...

UAC 355xB Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UAC 355xB
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· single-chip, USB specification 2.0-compliant, stereo audio A/D and D/A converter
· supports 8/16-bit mono/stereo recording and up to 24-bit playback
· supports streaming of compressed audio (Dolby Digital, MP3) to external decoder
· Vendor Identification and Device Configuration with external EEPROM
· bus-powered and self-powered mode possible
· remote wake-up
· 12 general-purpose I/O pins with HID support
· I2S input/output interface
· independent adaptive sample rates of 6.4 to 48 kHz
    for USB recording and playback (enhanced full duplex)
· audio baseband control: bass, treble, loudness, volume, balance, and mute
· dynamic bass management Micronas Bass (MB)
· digital speaker equalizer (5-band parametric equalizer)
· adjustable digital active crossover filter for subwoofer
· THD better than −90 dB and SNR of typically 96 dB for D/A converters
· THD better than −90 dB and SNR of typically 92 dB for A/D converters
· power supply rejection ratio >95 dB for analog outputs
· integrated low-power stereo headphone amplifier
· subwoofer output
· I2C interface (master/slave)
· customized firmware extensions with plug-ins possible


Pinout

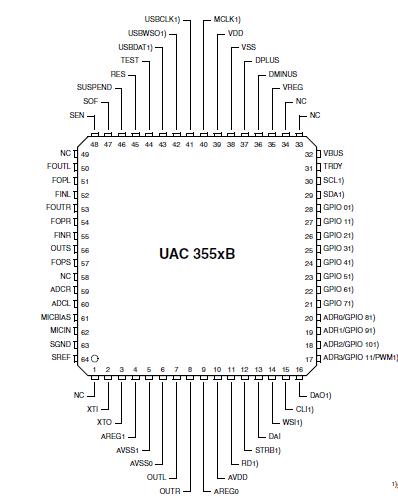

Connection Diagram


Specifications

Symbol
 Parameter
Pin
Name
Limit Values
Unit
Min.
Max.
TA 1)
 Ambient Operating Temperature
−10
702)
TC
 Case Operating Temperature
for PQFN64-1 package
for PMQFP64-2 package
−10
−10
115
120
TS
 Storage Temperature
−40
125
PMAX
 Power Dissipation
for PQFN64-1 package
for PMQFP64-2 package
0
0
125
mW
VSUPA
 Analog Supply Voltage3)
AVDD
−0.3
1190
870
V
VSUPA
 Analog Supply Voltage4)
AVDD,
AREG0/1
−0.3
6
V
VSUPD
 Digital Supply Voltage
VDD
−0.3
6
V
VGRND
 Voltage Differences between
different Grounds
AVSS0,
AVSS1,
VSS
−0.5
+0.5
V
VIdig
 Input Voltage, all digital inputs
−0.3
VSUPD + 0.3
V
IIdig
 Input Current, all digital inputs5)
−20
+20
mA

1) Measured on Micronas typical 2-layer (1s1p) board based on JESD - 51.2 Standard with maximum power consumption allowed for this package
2) A power-optimized board layout is recommended. The Case Operating Temperature mentioned in the "Absolute
Maximum Ratings" must not be exceeded at worst case conditions of the application.
3) Internal regulators used
4) If internal regulators are not used, connect AVDD to AREG0/1.
5) Positive value means current flowing into the circuit.
