UCC3305

Features: • Regulates Lamp Power• Compensates For Lamp Temperature• Fixed Frequency Operation• Current Mode Control• Overcurrent Protected• Overvoltage Shutdown• Open and Short Protected• High Current FET Drive Output• Operates Over Wide Batter...

product image

UCC3305 Picture
See larger image
SeekIC No. : 004535951 Detail

UCC3305: Features: • Regulates Lamp Power• Compensates For Lamp Temperature• Fixed Frequency Operation• Current Mode Control• Overcurrent Protected• Overvoltage Shutdown&#...

UCC3305 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UCC3305
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Regulates Lamp Power
• Compensates For Lamp Temperature
• Fixed Frequency Operation
• Current Mode Control
• Overcurrent Protected
• Overvoltage Shutdown
• Open and Short Protected
• High Current FET Drive Output
• Operates Over Wide Battery Voltage Range: 5V to 18V


Pinout

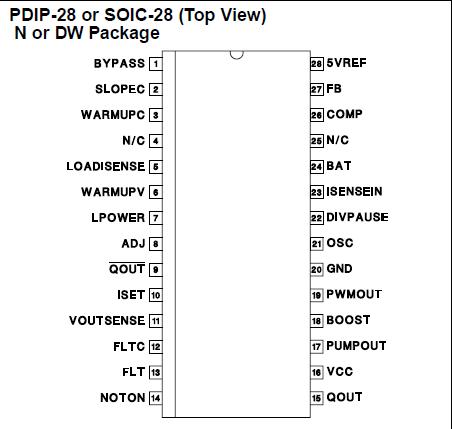

Connection Diagram


Specifications

VCC Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.0V
BOOST Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . .  . . 12.0V
PWMOUT Current, Peak . . . . . . . . . . . . . . . . . . . . . . . . . ±1.0A
PWMOUT Energy, Capacitive Load . . . . . . . . . . .  . .  . . . . 5.0J
Input Voltage, Any Input. . . . . . . . . . . . . . .   . 0.3V to +10.0V
Output Current, QOUT, QOUT, FLT . . . . . . . . . . . . . . . ±10.0mA
Output Current, 5VREF, LPOWER, COMP. . . . . . . . . . . ±10.0mA
ISET Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0mA
Storage Temperature . . . . . . . . . . . . . . . . . .  .. −65 to +150
Junction Temperature. . . . . . . . . . . . . . . .  . . . . −55 to +150
Lead Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +300

All voltages with respect to GND. Currents are positive into, eng-ative out of the specified terminal. Consut Packaging Section of Databook fo thermal limitations and comsiderations of pack-ages.


Description

The UCC3305 integrates all of the functions required to control and drive one HID lamp. The UCC3305 is tailored to the demanding, fast turn-on requirements of automobile headlamps, but is also applicable to all other lighting applications where HID lamps are selected. HID lamps are ideal for any lighting applications that can benefit from very high efficiency, blue-white light color, small physical lamp size, and very long life.

The UCC3305 contains a complete current mode pulse width modulator, a lamp power regulator, lamp temperature compensation, and total fault protection. Lamp temperature compensation is critical for automobile headlamps, because without compensation, light output varies dramatically from a cold lamp to one that is fully warmed up.

The UCC2305 is tested for full performance with ambient temperature from 40 to +105 while the UCC3305 is tested with ambient temperature from 0 to +70. The UCC3305 is available in a 28 pin small-outline, surface mount plastic package (SOIC).
