Part Number: UPC2771T



MFG: NEC

Package Cooled: SOT363

D/C: 08+

Description: The UPC2771T is a Silicon Monolithic integrated circuit which is manufactured using the NESAT III proc...


Urgent Purchase

UPC2771T General Description


The UPC2771T is a Silicon Monolithic integrated circuit which is manufactured using the NESAT III process. The NESAT III process produces transistors with fT approaching 20 GHz. This amplifier was designed as a driver amplifier for digital cellular applications. Operating on a 3 volt supply, this IC is ideally suited for hand-held, portable designs.

NEC's stringent quality assurance and test procedures ensure the highest reliability and performance.

UPC2771T Maximum Ratings

SYMBOLS
PARAMETERS
UNITS
RATINGS
VCC
Supply Voltage
V
3.6
ICC
Total Supply Current
mA

77.7

PIN
 Input Power
dBm
+13
PT
 Total Power Dissipation2
mW
280
TOP
 Operating Temperature
-40 to +85
TSTG
Storage Temperature
-55 to +150
Notes:
1. Operation in excess of any one of these parameters may result in
    permanent damage.
2. Mounted on a 50 X 50 X 1.6 mm epoxy glass PWB (TA = 85).

UPC2771T Features

• HIGH GAIN: 20 dB at 900 to 1500 MHz Typical
• HIGH OUTPUT POWER: PSAT = +12.5 dBm at 900 MHz
                                                   +11 dBm at 1500 MHz
• LOW BIAS VOLTAGE: 3.0 V Typical, 2.7 V Minimum
• SUPER SMALL PACKAGE
• TAPE AND REEL PACKAGING OPTION AVAILABLE

UPC2771T Connection Diagram

UPC2771T Connection Diagram

UPC2771T datasheet

UPC2771TB
PDF/DataSheet Download

Find UPC2771T Suppliers

  • ·UPC1028H
  • nec
  • Analog IC
  • 576711 KB
  • UPC1028H Datasheet Download
  • ·UPC1042
  • NEC [NEC]
  • SWITCHING REGULATOR CONTROL CIRCUIT
  • 255177 KB
  • UPC1042 Datasheet Download
  • ·UPC1060
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060 Datasheet Download
  • ·UPC1060C
  • NEC [NEC]
  • 2.5 V HIGH PRECISION REFERENCE VOLTAGE CIRCUIT
  • 54686 KB
  • UPC1060C Datasheet Download
  • ·UPC1093
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093 Datasheet Download
  • ·UPC1093G
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093G Datasheet Download
  • ·UPC1093J
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093J Datasheet Download
  • ·UPC1093T
  • NEC [NEC]
  • ADJUSTABLE PRECISION SHUNT REGULATORS
  • 111901 KB
  • UPC1093T Datasheet Download

Related Part Number

UPC2771T Relative Products

  • UPC2766GR

    UPC2766GR

    The UPC2766GR Silicon MMIC Wideband IQ Demodulator was manufactured with the NESAT III MMIC process. The NESAT III process produces transistors with fT approaching 20 GHz. The device was designed specifically for digital video and data receivers. The IC cons...

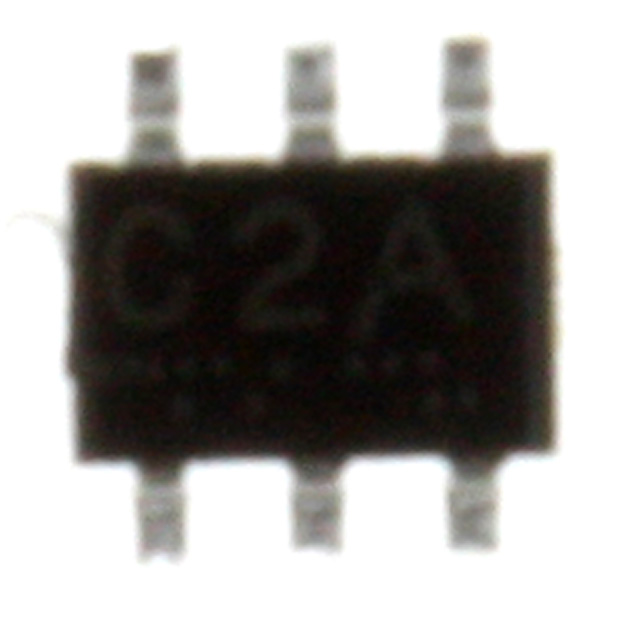

  • UPC2763TB-E3-A
