Part Number: UPD16520
Description: The PD16520 is a vertical driver for CCD image sensors that has a level conv...
- Table of contents:
UPD16520
-
Suppliers
DataSheet
General Description
UPD16520 General Description
The PD16520 is a vertical driver for CCD image sensors that has a level conversion circuit and a 3-level output function. Since it incorporates a CCD vertical register driver equivalent to the PD16510 (10 channels, consisting of six 3-level channels and four 2-level channels) and a VOD shutter driver (1 channel), it is ideal as a vertical driver for multiple-electrode high-pixel CCD transfer type area image sensors employed in digital still cameras.
The PD16520 uses a CMOS process to achieve optimum transmission delay characteristics for vertical driving of CCD image sensors, as well as output on-state resistance characteristics. The PD16520 also supports low-voltage logic (logic supply voltage: 2.0 to 5.5 V).
UPD16520 Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Ratings |
Unit |
| Supply Voltage |
VSS |
0.0 to -10 |
V | |
|
VCC |
VSS - 0.3 to VSS + 20.0 |
V | ||
|
VDD1 |
VSS - 0.3 to VSS + 33.0 |
V | ||
|
VDD2 |
VSS - 0.3 to VSS + 33.0 |
V | ||
|
Vsb |
VSS - 0.3 to VSS + 33.0 |
V | ||
| Input pin voltage |
VI |
VSS - 0.3 to VCC + 0.3 |
V | |
| Operating ambient temperature |
TA |
-25 to +85 |
||
| Storage temperature |
Tstg |
-40 to +125 |
||
| Allowable dissipation |
Pd |
500 |
mW |
Caution Product quality may suffer if the absolute maximum rating is exceeded even momentarily for any parameter. That is, the absolute maximum ratings are rated values at which the product is on the verge of suffering physical damage, and therefore the product must be used under conditions that ensure that the absolute maximum ratings are not exceeded.
UPD16520 Features
` CCD vertical register driver: 10 channels (3-level: 6 channels, 2-level: 4 channels)
` VOD shutter driver: 1 channel
` High withstand voltage: 33 V Max.
` Low-output on-state resistance: 30 TYP.
` Low-voltage input supported (Logic supply voltage: 2.0 to 5.5 V)
` Latch-up free
` Same drive capacity as mPD16510
` Small package: 38-pin plastic shrink SOP (300 mil)
` VOD shutter driver: 1 channel
` High withstand voltage: 33 V Max.
` Low-output on-state resistance: 30 TYP.
` Low-voltage input supported (Logic supply voltage: 2.0 to 5.5 V)
` Latch-up free
` Same drive capacity as mPD16510
` Small package: 38-pin plastic shrink SOP (300 mil)
UPD16520 Typical Application
Digital still cameras, digital video cameras, etc.

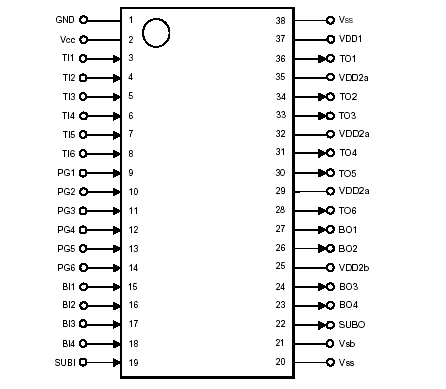

UPD16520 Connection Diagram
UPD16520
PDF/DataSheet Download
- Datasheet: UPD16520
- File Size: 103266 KB
- Manufacturer: NEC [NEC]
- Click here to Download
