UPD4726

Features:

• Conforms to EIA/TIA-32-E (old RS-232C) Standards
• +5 V single power supply
• A standby mode can be set by making the standby pin low to reduce the power dissipation.  At this time, the driver outputs go into a high-impedance state.
• Two receiver circuits can operate as inverters without a hysteresis width even in the standby mode.  The remaining five receiver circuits are fixed to the high level.

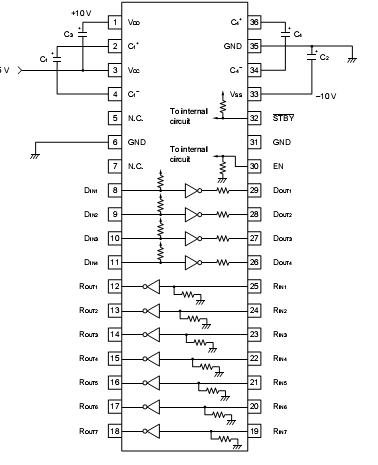

Pinout




Specifications

Parameter	Symbol	Ratings	Unit
oltage	VCC	-0.5 to +7.0	V
Driver input voltage	DIN	0.5 to VCC +0.5	V
Receiver input voltage	RIN	-30.0 to +30.0	V
Control inputvoltage(STBY,EN)	VIN	-0.5 to V + 0.5	V
Driver output voltage	DOUT	-25.0 to +25.0 Note 5	V
Receiver output voltage	ROUT	-0.5 to VCC + 0.5	V
Input current (DIN, STBYEN)	IINI	±20.0	mA
Operating ambient temperature	Topt.	-40 to +85	°C
Storage temperature	Tstg.	-55 to +150	°C
Permissible package powerdissipation	PT	0.5	W

Description

The PD4726 is a high-voltage silicon gate CMOS line driver/receiver conforming to EIA/TIA-232-E Standards.It contains a DC/DC converter and can operate with a +5 V single power supply.  In addition, it is also provided withancillary functions such as a standby function.This IC is equipped with four driver circuits and seven receiver circuits and can configure a simple RS-232 interfacecircuit with only four external capacitors.
