General Description
UPD72870A Features
• Compliant with Link Layer Services as defined in 1394 Open Host Controller Interface specification release 1.0
• Compliant with Physical Layer Services as defined in P1394a draft 2.0 (Data Rate 100/200/400 Mbps)
• Numbers of supported port (1, 2, 3 ports) are selectable
• Compliant with protocol enhancement as defined in P1394a draft 2.0
• Modular 32-bit host interface compliant to PCI Specification release 2.1
• Support PCI-Bus Power Management Interface Specification release 1.0
• Modular 32-bit host interface compliant to Card Bus Specification
• Cycle Master and Isochronous Resource Manager capable
• Built-in FIFOs for isochronous transmit (1024 bytes), asynchronous transmit (1024 bytes), and receive (2048
bytes)
• 32-bit CRC generation and checking for receive/transmit packets
• 4 isochronous transmit DMAs and 4 isochronous receive DMAs supported
• 32-bit DMA channels for physical memory read/write
• Clock generation by 24.576 MHz X'tal
• Internal control and operational registers direct-mapped to PCI configuration space
• 2-wire Serial EEPROMTM interface supported
• Separate power supply Link and PHY
• Programmable latency timer from serial EEPROM in Cardbus mode (CARD_ON = 1)
• Compliant with Physical Layer Services as defined in P1394a draft 2.0 (Data Rate 100/200/400 Mbps)
• Numbers of supported port (1, 2, 3 ports) are selectable
• Compliant with protocol enhancement as defined in P1394a draft 2.0
• Modular 32-bit host interface compliant to PCI Specification release 2.1
• Support PCI-Bus Power Management Interface Specification release 1.0
• Modular 32-bit host interface compliant to Card Bus Specification
• Cycle Master and Isochronous Resource Manager capable
• Built-in FIFOs for isochronous transmit (1024 bytes), asynchronous transmit (1024 bytes), and receive (2048
bytes)
• 32-bit CRC generation and checking for receive/transmit packets
• 4 isochronous transmit DMAs and 4 isochronous receive DMAs supported
• 32-bit DMA channels for physical memory read/write
• Clock generation by 24.576 MHz X'tal
• Internal control and operational registers direct-mapped to PCI configuration space
• 2-wire Serial EEPROMTM interface supported
• Separate power supply Link and PHY
• Programmable latency timer from serial EEPROM in Cardbus mode (CARD_ON = 1)

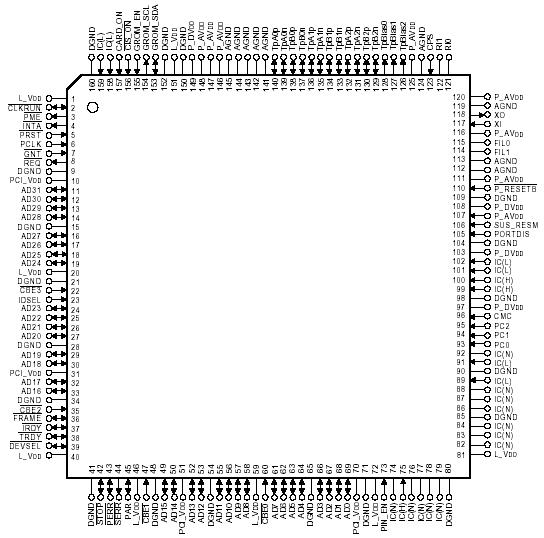

UPD72870A Connection Diagram
