UPD750108
-
Suppliers
DataSheet
General Description
UPD750108 Maximum Ratings
| Parameter | Symbol | Conditions | Rated value | Unit | |
| Supply voltage | VDD | -0.3 to +7.0 |
V | ||
| Input voltage | VI1 | Other than ports 4 and 5 | -0.3 to VDD + 0.3 | V | |
| VI2 | Ports 4 and 5 |
With a built-in pull-up resistor | -0.3 to VDD + 0.3 | V | |
| With N-ch open drain | -0.3 to +14.0 | V | |||
| Output voltage | VO | -0.3 to VDD + 0.3 | V | ||
| High-level output current | IOH | Each pin | -10 | mA | |
| Total of all pins | -30 | mA | |||
| Low-level output current | IOH | Each pin | 30 | mA | |
| Total of all pins | 220 | mA | |||
| Operating ambient temperature | TA | -40 to +85 | °C | ||
| Storage temperature | Tstg | -65 to +150 | °C | ||
UPD750108 Features
• Built-in RC oscillator
• Enables the immediate start of processing after the release of standby mode
• Capable of low-voltage operation: VDD = 1.8 to 5.5 V
• Internal memory
Program memory (ROM)
: 4,096 ´ 8 bits (mPD750104 and mPD750104(A))
: 6,144 ´ 8 bits (mPD750106 and mPD750106(A))
: 8,192 ´ 8 bits (mPD750108 and mPD750108(A))
Data memory (RAM)
: 512 ´ 4 bits
• Function for specifying the instruction execution time (useful for saving power)
4 ms, 8 ms, 16 ms, 64 ms (when operating at 1.0 MHz
2 ms, 4 ms, 8 ms, 32 ms (when operating at 2.0 MHz)
122 ms (when operating at 32.768 kHz)
• Enhanced timer function (4 channels)
• Can be easily substituted for the mPD750008 because this product succeeds to the functions and instructions of the mPD750008.
UPD750108 Typical Application
• UPD750104, mPD750106, and mPD750108 Cameras, meters, and pagers
• UPD750104(A), mPD750106(A), and mPD750108(A) Electrical equipment for automobiles
• UPD750104(A), mPD750106(A), and mPD750108(A) Electrical equipment for automobiles

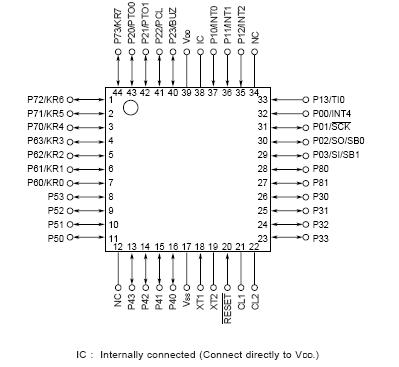

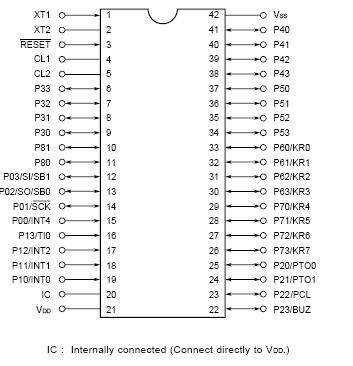

UPD750108 Connection Diagram
UPD750108CUA
PDF/DataSheet Download
- Datasheet: UPD750108CUA
- File Size: 537848 KB
- Manufacturer: NEC [NEC]
- Click here to Download
