Part Number: UPD75206
Description: The UPD75206 is a microcomputer with a CPU capable of 1-, 4-, and 8-bit-wise data processing, a ROM, a RAM,I/O p...
- Table of contents:
UPD75206
-
Suppliers
DataSheet
General Description
UPD75206 General Description
The UPD75206 is a microcomputer with a CPU capable of 1-, 4-, and 8-bit-wise data processing, a ROM, a RAM,I/O ports, a fluorescent display tube controller/driver, a watch timer, a timer/pulse generator capable of outputting 14-bit PWM, a serial interface and a vectored interrupt function integrated on a single-chip.
It uses the VCR, ECR and CD fluorescent display tubes as display devices and is most suitable for applications requiring the timer/watch function and high-speed interrupt servicing. It can help to provide the unit with many functions and to decrease performance costs.
With the UPD75206, the PD75P216A, 75P218 one-time PROM products are available for system development evaluation or small production.
Detailed functions, etc. are described in the following user's manual. Be sure to read the manual for designing.
UPD75216A User's Manual: IEM-988
UPD75206 Features
* Architecture equal to that of an 8-bit microcomputer
* High-speed operation : Minimum instruction execution time : 0.95 s (when operated at 4.19 MHz)
* Instruction execution time variable function realizing a wide range of operating voltages
* On-chip large-capacity program memory : 6K bytes
* Watch operation with an ultra low current consumption : 5A TYP. (at the 3 V operation)
* On-chip programmable fluorescent display tube controller/driver
* Timer function : 4 ch
* 14-bit PWM output capability with the voltage synthesizer type electronic tuner
* Buzzer output capability
* Interrupt function with importance attached to applications
* For power-off detection
* For remote controlled reception
* Product with an on-chip PROM : PD75P216A, PD75P218 (on-chip EPROM : WQFN package) H
* High-speed operation : Minimum instruction execution time : 0.95 s (when operated at 4.19 MHz)
* Instruction execution time variable function realizing a wide range of operating voltages
* On-chip large-capacity program memory : 6K bytes
* Watch operation with an ultra low current consumption : 5A TYP. (at the 3 V operation)
* On-chip programmable fluorescent display tube controller/driver
* Timer function : 4 ch
* 14-bit PWM output capability with the voltage synthesizer type electronic tuner
* Buzzer output capability
* Interrupt function with importance attached to applications
* For power-off detection
* For remote controlled reception
* Product with an on-chip PROM : PD75P216A, PD75P218 (on-chip EPROM : WQFN package) H

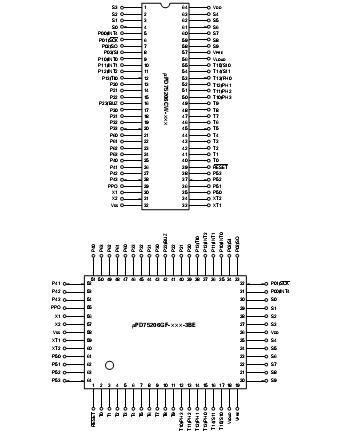

UPD75206 Connection Diagram
UPD75206CW
