UPG138GV

Features: • WIDE FREQUENCY RANGE: 100 MHz to 2.5 GHz• LOW INSERTION LOSS: 0.55 dB TYP at 1.0 GHZ 0.65 dB TYP at 2.0 GHz• HIGH P1dB: +35 dBm MIN using +5 or -5 V +34 dBm TYP using +3 or -3 V• SMALL 8 PIN SSOP PACKAGE• AVAILABLE ON TAPE AND REELPinoutSpecifications ...

product image

UPG138GV Picture
See larger image
SeekIC No. : 004538348 Detail

UPG138GV: Features: • WIDE FREQUENCY RANGE: 100 MHz to 2.5 GHz• LOW INSERTION LOSS: 0.55 dB TYP at 1.0 GHZ 0.65 dB TYP at 2.0 GHz• HIGH P1dB: +35 dBm MIN using +5 or -5 V +34 dBm TYP using +...

UPG138GV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
UPG138GV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• WIDE FREQUENCY RANGE: 100 MHz to 2.5 GHz
• LOW INSERTION LOSS: 0.55 dB TYP at 1.0 GHZ
                                        0.65 dB TYP at 2.0 GHz
• HIGH P1dB: +35 dBm MIN using +5 or -5 V
                      +34 dBm TYP using +3 or -3 V
• SMALL 8 PIN SSOP PACKAGE
• AVAILABLE ON TAPE AND REEL



Pinout

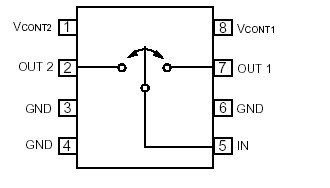

Connection Diagram


Specifications

SYMBOLS
PARAMETERS
UNITS
RATINGS
UPG137GV
RATINGS
UPG138GV
VCONT 1,2
 Control Voltage 1 and 2
V
-0.6 to +6
-0.6 to +6
PIN
 Input Power VCONT = -5 or +5 V
                     VCONT = -3 or +3 V
dBm
dBm
+37
+35
+37
+35
PT
 Total Power Dissipation
W
0.7
0.7
TOP
 Operating Case Temperature
-50 to +90
-50 to +90
TSTG
 Storage Temperature
-65 to +150
-65 to +150
Note:
1. Operation in excess of any one of these parameters may result in permanent damage.


Description

The UPG137GV and UPG138GV are L-Band Single Pole Double Throw (SPDT) GaAs MMIC switches developed for digital cellular, PCS, and WLAN applications. These devices feature wide bandwidth, low insertion loss, and high P1dB. The UPG137GV operates on a +3 to +5 V control voltage, while the UPG138GV operates on -3 to -5 V. They are housed in a very small, low-cost, 8 pin SSOP package and are available on tape-and-reel.

NEC's stringent quality assurance and test procedures UPG137GV and UPG138GV ensure the highest reliability and performance.
