Features:

CIR Controller
Consumer IR (CIR) Controller with support for all popular CIR formats.
Flash Media Controller
Complete System Solution for interfacing SmartMediaTM (SM) or xD Picture CardTM (xD)1, Memory StickTM (MS), High Speed Memory Stick
(HSMS), Memory Stick PRO (MSPRO), MS DuoTM, Secure Digital (SD), High Speed SD, Mini-Secure Digital (Mini-SD), TransFlash (SD), MultiMediaCardTM (MMC), Reduced Size MultiMediaCard (RS-MMC), NAND Flash, Compact FlashTM (CF) and CF UltraTM I & II, and CF formfactor ATA hard drives to Hi-Speed USB
- Supports USB Bulk Only Mass Storage Compliant Bootable BIOS
Support for simultaneous operation of all above devices. (only one at a time of each of the following groups supported: CF or ATA drive, SM or XD or NAND, SD or MMC)
On-Chip 4-Bit High Speed Memory Stick and MS PRO Hardware Circuitry
On-Chip firmware reads and writes High Speed Memory Stick and MS PRO
1-bit ECC correction performed in hardware for maximum efficiency
Hardware support for SD Security Command Extensions
On-chip power FETs with short circuit protection for supplying flash media card power
USB Bus Power Certified
3.3 Volt I/O with 5V input tolerance on VBUS/GPIO3
Complete USB Specification 2.0 Compatibility for Bus Powered Operation
- Includes Hi-Speed USB Transceiver
- A Bi-directional Control and two Bi-directional Bulk Endpoints are provided.
8051 8 bit microprocessor
- Provides low speed control functions
- 30 Mhz execution speed at 1 clock per instruction cycle average
- 12K Bytes of internal SRAM for general purpose scratchpad
- 768 Bytes of internal SRAM for general purpose scratchpad or program execution while re-flashing external ROM
- Two, Double Buffered Bulk Endpoints
- Two, Bi-directional 512 Byte Buffers for Bulk Endpoints
- 64 Byte RX Control Endpoint Buffer
- 64 Byte TX Control Endpoint Buffer
Internal or External Program Memory Interface
- 76K Byte Internal Code Space or Optional 128K Byte External Code Space using Flash, SRAM or EPROM memory.
On Board 24Mhz Crystal Driver Circuit
Can be clocked by 48MHz external source
On-Chip 1.8V Regulator for Low Power Core Operation
Internal PLL for 480Mhz Hi-Speed USB Sampling, Configurable MCU clock
Supports firmware upgrade via USB bus if "boot block" Flash program memory is used
12 GPIOs for special function use: LED indicators, button inputs, power control to memory devices, etc.
- Inputs capable of generating interrupts with either edge sensitivity
Attribute bit controlled features:
- Activity LED polarity/operation/blink rate
- Full or Partial Card compliance checking
- Bus or Self Powered
- LUN configuration and assignment
- Write Protect Polarity
- SmartDetachTM - Detach from USB when no Card Inserted for Notebook apps
- Cover Switch operation for xD compliance
- Inquiry Command operation
- SD Write Protect operation
- Older CF card support
- Force USB 1.1 reporting
- Internal or External Power FET operation
Compatible with Microsoft WinXP, WinME, Win2K SP3, Apple OS10, Softconnex, and Linux Multi-LUN Mass Storage Class Drivers
Win2K, Win98/98SE and Apple OS8.6 and OS9 Multi-LUN Mass Storage Class Drivers available from SMSC
128 Pin TQFP Package (1.0mm height, 14mmx14mm footprint); green, lead-free package also available.




Pinout

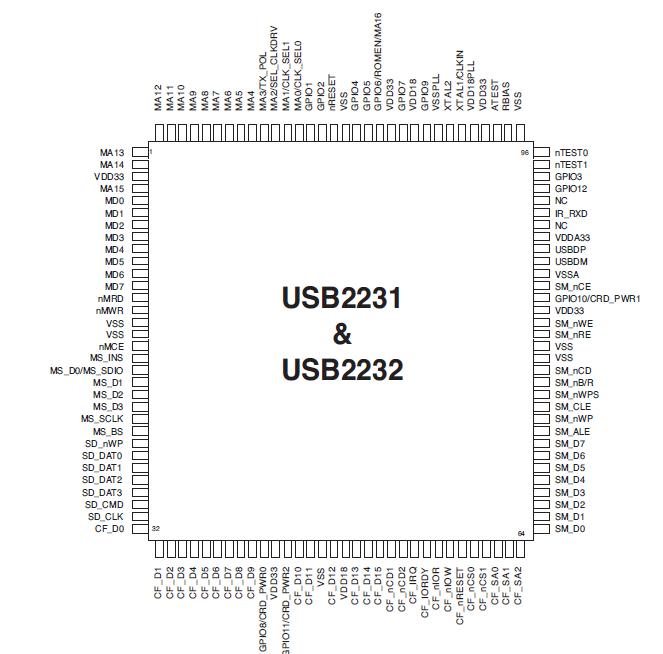

  Connection Diagram


Specifications

Operating Temperature Range ......................................................................0 to +70
Storage Temperature Range.................................................................... -55° to +150
Lead Temperature Range (soldering, 10 seconds) ................................................+325
Positive Voltage on GPIO3, with respect to Ground............................................ ..... 5.5V
Positive Voltage on any signal pin, with respect to Ground ................................ .... 4.6V
Positive Voltage on XTAL1, with respect to Ground ................................................. 4.0V
Positive Voltage on XTAL2, with respect to Ground ................................................. 2.5V
Negative Voltage on GPIO8, 10 & 11, with respect to Ground (see Note 7.2)......... -0.5V
Negative Voltage on any pin, with respect to Ground .............................................-0.5V
Maximum VDD18, VDD18PLL ................................................................................ .... +2.5V
Maximum VDD33, VDDA33 ........................................................................................ +4.6V

*Stresses above the specified parameters could cause permanent damage to the device. This is a stress rating only and functional operation of the device at any other condition above those indicated in the operation sections of this specification is not implied.




Description

The USB2231/USB2232 is a Hi-Speed USB Consumer IR and Bulk Only Mass Storage Class Peripheral Controller. The Bulk Only Mass Storage Class Peripheral Controller supports CompactFlash (CF) in True IDE Mode only, SmartMedia (SM), Memory Stick (MS) including both serial and parallel interface and Secure Digital/MultiMediaCard (SD/MMC) flash memory devices. It provides a single chip solution for the most popular flash memory cards in the market. In addition, the CIR controller consists of the SMSC CIrCC block, which includes a Synchronous Communications Engine (SCE) and hardware demodulators for the supported CIR formats.

The USB2232 consists of a USB2.0 PHY and SIE, buffers, Fast 8051 microprocessor with expanded scratchpad, and program SRAM, and CIR, CF, MS, SM and SD controllers. The SD controller supports both SD and MMC devices.

Provisions for external Flash Memory up to 128K bytes for program storage is provided (note: when Bank switching is enabled the upper 64K will map into the 8051 ROM space, otherwise, only the first 64K bytes is used).

12K bytes of scratchpad SRAM and 768Bytes of program SRAM are also provided.

USB2232 is provided for indicators, external serial EEPROM for OEM ID and system configuration information, and other special functions.
