Product Details

Description



Features:

 256K x 16-bit organization
Fast Page Mode for a sustained data rate of 53 MHz.
 RAS access time: 30, 35, 40, 45, 50, 60 ns
Dual CAS Inputs
Low power dissipation
 Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh
 Refresh Interval: 512 cycles/8 ms
 Available in 40-pin 400 mil SOJ and 40/44L-pin 400 mil TSOP-II packages
Single +5V±10% Power Supply
TTL Interface


Pinout

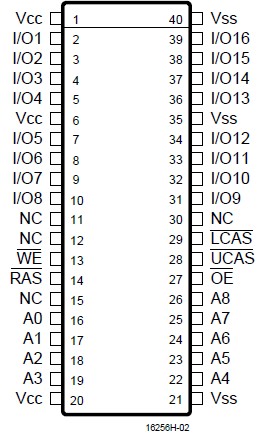

Connection Diagram




Specifications

Ambient TemperatureUnder Bias...................................................... 10°C to +80°C
Storage Temperature (plastic)........................................................ 55°C to +125°C
Voltage Relative to VSS ......................................................................1.0 V to +7.0V
Data Output Current ........................................................................................ 50 mA
Power Dissipation.............................................................................................. 1.0 W


Description

The V53C16256H is a 262,144 x 16 bit highperformance CMOS dynamic random access memory. The V53C16256H offers Fast Page mode with dual CAS inputs. An address, CAS and RAS input capacitances are reduced to one quarter when the x4 DRAM is used to construct the same memory density. The V53C16256H has symmetric address and accepts 512 cycle 8ms interval.

All inputs are TTL compatible. Fast Page Mode operation allows random access up to 512 x 16 bits, within a page, with cycle times as short as 19ns.

The V53C16256H is best suited for graphics, and DSP applications.
