V53C16258H

Features: 256K x 16-bit organizationEDO Page Mode for a sustained data rate of 100 MHzRAS access time: 25, 30, 35, 40, 45, 50 nsDual CAS InputsLow power dissipationRead-Modify-Write, RAS-Only Refresh,CAS-Before-RAS RefreshOptional Self Refresh (V53C16258SH)Refresh Interval: 512 cycles/8 msAvailabl...

product image

V53C16258H Picture
See larger image
SeekIC No. : 004539926 Detail

V53C16258H: Features: 256K x 16-bit organizationEDO Page Mode for a sustained data rate of 100 MHzRAS access time: 25, 30, 35, 40, 45, 50 nsDual CAS InputsLow power dissipationRead-Modify-Write, RAS-Only Refres...

V53C16258H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V53C16258H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 256K x 16-bit organization
 EDO Page Mode for a sustained data rate of 100 MHz
 RAS access time: 25, 30, 35, 40, 45, 50 ns
 Dual CAS Inputs
 Low power dissipation
 Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh
 Optional Self Refresh (V53C16258SH)
 Refresh Interval: 512 cycles/8 ms
 Available in 40-pin 400 mil SOJ and 40/44L-pin400 mil TSOP-II packages
 Single +5V±10% Power Supply
 TTL Interface


Pinout

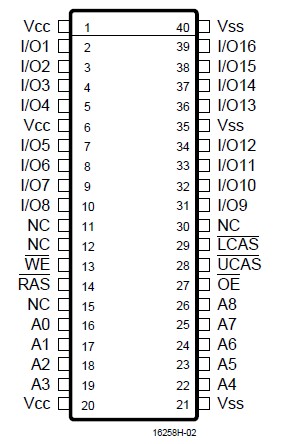

Connection Diagram




Specifications

Ambient TemperatureUnder Bias................................................... 10°C to +80°C
Storage Temperature (plastic)..................................................... 55°C to +125°C
Voltage Relative to VSS ..................................................................1.0 V to +7.0 V
Data Output Current ..................................................................................... 50 mA
Power Dissipation........................................................................................... 1.0 W


Description

The V53C16258H is a high speed 262,144 x 16 bit high performance CMOS dynamic random access memory. The V53C16258H offers a combination of unique features including: EDO Page Mode operation for higher sustained bandwidth with Page Mode cycle times as short as 10ns. All inputs are TTL compatible. Input and output capicatance is significantly lowered to increase performance and minimize loading. These features make the V53C16258H ideally suited for a wide variety of high performance computer systems and peripheral applications.
