V53C516405A

Features: 4M x 4-bit organization EDO Page Mode for a sustained data rate of 50 MHzRAS access time: 50, 60, 70 ns Low power dissipation Read-Modify-Write, RAS-Only Refresh, CAS-Before-RAS Refresh, Hidden Refresh Refresh Interval: 4096 cycles/64 ms Available in 24/26-pin 300 mil SOJ, and 24/26-pin ...

product image

V53C516405A Picture
See larger image
SeekIC No. : 004539935 Detail

V53C516405A: Features: 4M x 4-bit organization EDO Page Mode for a sustained data rate of 50 MHzRAS access time: 50, 60, 70 ns Low power dissipation Read-Modify-Write, RAS-Only Refresh, CAS-Before-RAS Refresh, H...

V53C516405A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V53C516405A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 4M x 4-bit organization
EDO Page Mode for a sustained data rate of 50 MHz
 RAS access time: 50, 60, 70 ns
Low power dissipation
Read-Modify-Write, RAS-Only Refresh, CAS-Before-RAS Refresh, Hidden Refresh
Refresh Interval: 4096 cycles/64 ms
Available in 24/26-pin 300 mil SOJ, and 24/26-pin 300 mil TSOP-II
Single +5 V±10% Power Supply
TTL Interface

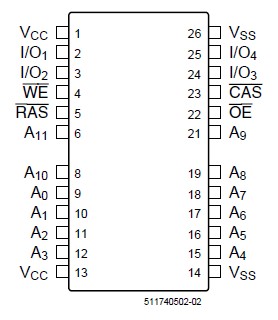

Pinout

Connection Diagram


Specifications

Operating temperature range ......................................................................0 to 70°C
Storage temperature range ................................................................... -55 to 150°C
Input/output voltage ......................................................... -0.5 to min (VCC+0.5, 7) V
Power supply voltage .................................................................................-1.0V to 7V
Power dissipation ............................................................................................... 1.0 W
Data out current (short circuit) .......................................................................... 50 mA


Description

The V53C516405A is a 4,194,304 x 4 bit highperformance CMOS dynamic random access memory. The V53C516405A offers Page mode operation with Extended Data Output. The V53C516405A has a symmetric address, 12-bit row and 10-bit column.

All inputs are TTL compatible. EDO Page Mode operation allows random access up to 1024 x 4 bits, within a page, with cycle times as short as 20ns.

These features make the V53C516405A ideally suited for a wide variety of high performance computer systems and peripheral applications.
