V53C808H

Features: 1M x 8-bit organization EDO Page Mode for a sustained data rate of 72 MHzRAS access time: 35, 40, 45, 50 nsLow power dissipation Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh capability Optional Self Refresh (V53C808SH) Refresh Interval: 1024 cycles/16 ms Available in 28-pin...

product image

V53C808H Picture
See larger image
SeekIC No. : 004539941 Detail

V53C808H: Features: 1M x 8-bit organization EDO Page Mode for a sustained data rate of 72 MHzRAS access time: 35, 40, 45, 50 nsLow power dissipation Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh ...

V53C808H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V53C808H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 1M x 8-bit organization
EDO Page Mode for a sustained data rate of 72 MHz
 RAS access time: 35, 40, 45, 50 ns
 Low power dissipation
Read-Modify-Write, RAS-Only Refresh,CAS-Before-RAS Refresh capability
Optional Self Refresh (V53C808SH)
Refresh Interval: 1024 cycles/16 ms
Available in 28-pin 400 mil SOJ package
Single +5V± 10% Power Supply
TTL Interface

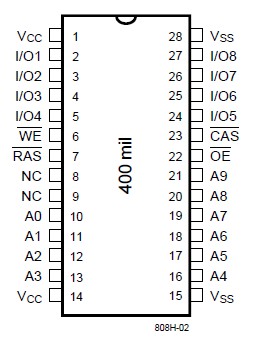

Pinout

Connection Diagram


Specifications

Ambient TemperatureUnder Bias........................................................ 10°C to +80°C
Storage Temperature (plastic).......................................................... 55°C to +125°C
Voltage Relative to VSS .......................................................................1.0 V to +7.0 V
Data Output Current .......................................................................................... 50 mA
Power Dissipation................................................................................................ 1.4 W


Description

The V53C808H is a ultra high speed 1,048,576 x 8 bit CMOS dynamic random access memory. The V53C808H offers a combination of features: Page Mode with Extended Data Output for high data bandwidth, and Low CMOS standby current.

All inputs and outputs are TTL compatible. Input and output capacitances are significantly lowered to allow increased system performance. Page Mode with Extended Data Output operation allows random access of up to 1024 x 8 bits within a row with cycle times as fast as 14 ns.

The V53C808H is ideally suited for graphics, digital signal processing and high-performance computing systems.
