Product Details

Description



Features:

4 banks x 2Mbit x 16 organization
High speed data transfer rates up to 166 MHz
Full Synchronous Dynamic RAM, with all signals referenced to clock rising edge
Single Pulsed RAS Interface
Data Mask for Read/Write Control
Four Banks controlled by BA0 & BA1
Programmable CAS Latency:1, 2, 3
Programmable Wrap Sequence: Sequential or Interleave
Programmable Burst Length:
   1, 2, 4, 8, Full page for Sequential Type
   1, 2, 4, 8 for Interleave Type
Multiple Burst Read with Single Write Operation
Automatic and Controlled Precharge Command
Random Column Address every CLK (1-N Rule)
Power Down Mode and Clock Suspend Mode
Deep Power Mode
Auto Refresh and Self Refresh
Refresh Interval: 4096 cycles/64 ms
Available in 54-ball FBGA, with 9x6 ball array with 3 depupulated rows, 9x8 mm and 54 pin TSOP II
VDD=2.5V, VDDQ=1.8V

Programmable Power Reduction Feature by partial array activation during Self-Refresh
Operating Temperature Range Commercial (0°C to 70°C) Extended (-25°C to +85°C)

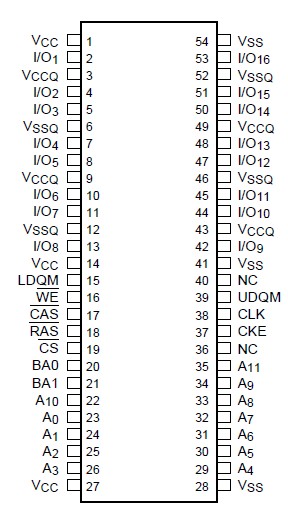

Pinout

Connection Diagram


Specifications

Operating temperature range (commercial)..................0 to 70 °C
Operating temperature range (extended) ................-25 to 85 °C
Storage temperature range ................................... -55 to 150 °C
Input/output voltage .................................... -0.3 to (VCC+0.3) V
Power supply voltage .............................................. -0.3 to 3.6 V
Power dissipation .............................................................. 0.7 W
Data out current (short circuit) .......................................... 50 mA
