Part Number: V62C21164096
Description: The V62C21164096 is a 4,194,304-bit static random-access memory organized as 262,144 words by 16 bits....
- Table of contents:
V62C21164096
-
Suppliers
DataSheet
General Description
V62C21164096 General Description
The V62C21164096 is a 4,194,304-bit static random-access memory organized as 262,144 words by 16 bits. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
V62C21164096 Maximum Ratings
|
Symbol |
Parameter |
Commercial |
Industrial |
Units |
|
VCC |
Supply Voltage |
-0.5 to VCC +0.5 |
-0.5 to VCC +0.5 |
V |
|
VN |
Input Voltage |
-0.5 to VCC +0.5 |
-0.5 to VCC+0.5 |
V |
|
VDQ |
Input/Output Voltage Applied |
VCC + 0.3 |
VCC + 0.3 |
V |
|
TBIAS |
Temperature Under Bias |
-10 to +125 |
-65 to +135 |
|
|
TSTG |
Storage Temperature |
-55 to +125 |
-65 to +150 |
V62C21164096 Features
High-speed: 70, 85 ns
Ultra low CMOS standby current of 4A (max.)
Fully static operation
All inputs and outputs directly TTL compatible
Three state outputs
Ultra low data retention current (VCC = 1.2V)
Operating voltage: 2.3V 3.0V
Packages
44-pin TSOP (Standard)
48-Ball CSP BGA (8mm x 10mm)
Ultra low CMOS standby current of 4A (max.)
Fully static operation
All inputs and outputs directly TTL compatible
Three state outputs
Ultra low data retention current (VCC = 1.2V)
Operating voltage: 2.3V 3.0V
Packages
44-pin TSOP (Standard)
48-Ball CSP BGA (8mm x 10mm)

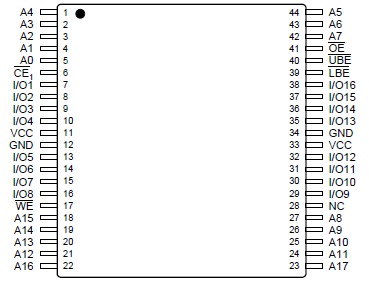

V62C21164096 Connection Diagram
V62C21164096
PDF/DataSheet Download
- Datasheet: V62C21164096
- File Size: 182553 KB
- Manufacturer: MOSEL [Mosel Vitelic, Corp]
- Click here to Download
