Purchase V62C2804096, In-stock V62C2804096 From SeekIC.
Part Number: V62C2804096
Description: The V62C2184096 is a very low power CMOS static RAM organized as 524,288 words by 8 bits.Easy memory e...
- Table of contents:
V62C2804096
-
Suppliers
DataSheet
General Description
V62C2804096 General Description
The V62C2184096 is a very low power CMOS static RAM organized as 524,288 words by 8 bits.Easy memory expansion is provided by an active LOW CE1, and active HIGH CE2, an active LOW OE, and three static I/O's. This device has an automatic power-down mode feature when deselected.
V62C2804096 Maximum Ratings
|
Symbol |
Parameter |
Commercial |
Industrial |
Units |
|
VCC |
Supply Voltage |
-0.5 to VCC +0.5 |
-0.5 to VCC +0.5 |
V |
|
VN |
Input Voltage |
-0.5 to VCC +0.5 |
-0.5 to VCC+0.5 |
V |
|
VDQ |
Input/Output Voltage Applied |
VCC + 0.3 |
VCC + 0.3 |
V |
|
TBIAS |
Temperature Under Bias |
-10 to +125 |
-65 to +135 |
|
|
TSTG |
Storage Temperature |
-55 to +125 |
-65 to +150 |
V62C2804096 Features
High-speed: 70, 85 ns
Ultra low standby current of 4A (max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (VCC = 1.2V)
Operating voltage: 2.3V3.0V
Packages
32-Pin TSOP (Standard)
36-Ball CSP BGA (8mm x 10mm)
Ultra low standby current of 4A (max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (VCC = 1.2V)
Operating voltage: 2.3V3.0V
Packages
32-Pin TSOP (Standard)
36-Ball CSP BGA (8mm x 10mm)

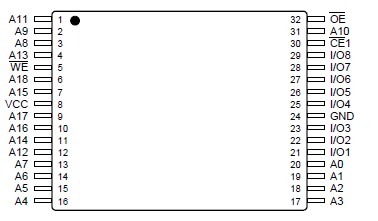

V62C2804096 Connection Diagram
V62C2804096
PDF/DataSheet Download
- Datasheet: V62C2804096
- File Size: 163900 KB
- Manufacturer: MOSEL [Mosel Vitelic, Corp]
- Click here to Download
