Part Number: V62C3162048L(L)
Description: The V62C3162048L is a Low Power CMOS Static AM organized as 131,072 words by 16 bits. Easy emory expan...
- Table of contents:
V62C3162048L(L)
-
Suppliers
DataSheet
General Description
V62C3162048L(L) General Description
The V62C3162048L is a Low Power CMOS Static AM organized as 131,072 words by 16 bits. Easy emory expansion is provided by an active LOW (CE) nd (OE) pin.
This device has an automatic power-down mode feature hen deselected. Separate Byte Enable controls (BLE nd BHE) allow individual bytes to be accessed. BLE ontrols the lower bits I/O1 - I/O8. BHE controls the pper bits I/O9 - I/O16.
Writing to these devices is performed by taking Chip nable (CE) with Write Enable (WE) and Byte Enable BLE/BHE) LOW.
Reading from the device is performed by taking Chip nable (CE) with Output Enable (OE) and Byte Enable BLE/BHE) LOW while Write Enable (WE) is held IGH.
V62C3162048L(L) Maximum Ratings
| Parameter |
Symbol |
Minimum |
Maximum |
Unit |
| Voltage on Any Pin Relative to Gnd |
Vt |
-0.5 |
+4.6 |
V |
| Power Dissipation |
PT |
- |
1.0 |
W |
| Storage Temperature (Plastic) |
Tstg |
-55 |
+150 |
0C |
| Temperature Under Bias |
Tbias |
-40 |
+85 |
0C |
V62C3162048L(L) Features
• Low-power consumption
-tive: 65mA ICC at 35ns
-tand-by: 10 mA (CMOS input/output)
2 mA(DS input/output, L version)
• 35/45/55/70/85/100 ns access time
• Equal access and cycle time
• Single +2.7V to3.3V Power Supply
• Tri-state output
• Automatic power-down when deselected
• Multiple center power and ground pins for mproved noise immunity
• Individual byte controls for both Read and rite cycles
• Available in 44 pin TSOP II / 48-fpBGA
-tive: 65mA ICC at 35ns
-tand-by: 10 mA (CMOS input/output)
2 mA(DS input/output, L version)
• 35/45/55/70/85/100 ns access time
• Equal access and cycle time
• Single +2.7V to3.3V Power Supply
• Tri-state output
• Automatic power-down when deselected
• Multiple center power and ground pins for mproved noise immunity
• Individual byte controls for both Read and rite cycles
• Available in 44 pin TSOP II / 48-fpBGA

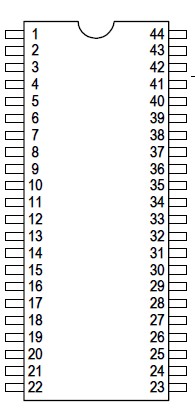

V62C3162048L(L) Connection Diagram
V62C3162048L(L)-35B
PDF/DataSheet Download
- Datasheet: V62C3162048L(L)-35B
- File Size: 112155 KB
- Manufacturer: MOSEL [Mosel Vitelic, Corp]
- Click here to Download
