V62C51864

Features:

High-speed: 35, 70 ns
Ultra low DC operating current of 5mA (max.)
Low Power Dissipation:
  -CTTL Standby: 2 mA (Max.)
  -CCMOS Standby: 15 mA (Max.)
Fully static operation
All inputs and outputs directly compatible
Three state outputs
Ultra low data retention current (V_CC = 2V)
Single 5V ±10% Power Supply
Packages
  -28-pin 600 mil PDIP
  -28-pin 330 mil SOP (450 mil pin-to-pin)

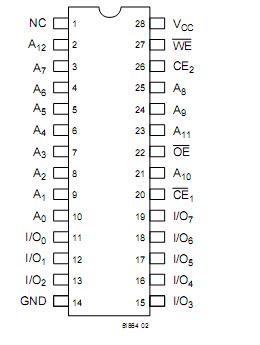

Pinout




Specifications

Symbol	Parameter	Commercial	Industrial	Units
VCC	Supply Voltage	-0.5 to +7	-0.5 to +7	V
VN	Input Voltage	-0.5 to +7	-0.5 to +7	V
VDQ	Input/Output Voltage Applied	CVC + 0.5	VCC + 0.5	V
TBIAS	Temperature Under Bias	-10 to +125	-65 to +135
TSTG	Storage Temperature	-55 to +125	-65 to +150

Description

The V62C51864 is a 65,536-bit static random access memory organized as 8,192 words by 8 bits. It is built with MOSEL VITELIC°Os hig performance CMOS process. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
