VB027ASP

Features:

 PRIMARY COIL VOLTAGE INTERNALLY SET
COIL CURRENT LIMIT INTERNALLY SET
LOGIC LEVEL COMPATIBLE INPUT
DRIVING CURRENT QUASI PROPORTIONAL TO COLLECTOR CURRENT
DOUBLE FLAG-ON COIL CURRENT

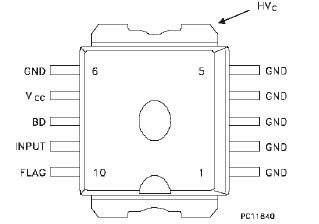

Pinout




Specifications

Symbol	Parameter	Value	Unit
HVc	Collector voltage	Internally limited	V
IC	Collector current	Internally limited	A
Vd	Driving stage supply voltage	7	V
Id	Driving circuitry supply current	200	mA
VIN	Input voltage	10	V
Tj	Junction operating temperature	-40 to 150	°C
Tstg	Storage temperature	-55 to 150	°C

Description

The VB027ASP is a high voltage power integrated circuits made using STMicroelectronics Vertical Intelligent Power Technology, with vertical current flow power darlington and logic level compatible driving circuits.

Built-in protection circuits for coil current limiting and collector voltage clamping allows the VB027ASP to be used as a smart, high voltage,high current interface in advanced electronic ignition systems.
