VHS-95

HEATSINK HALF BRICK ALUM BLACK

product image

VHS-95 Picture
SeekIC No. : 003444259 Detail

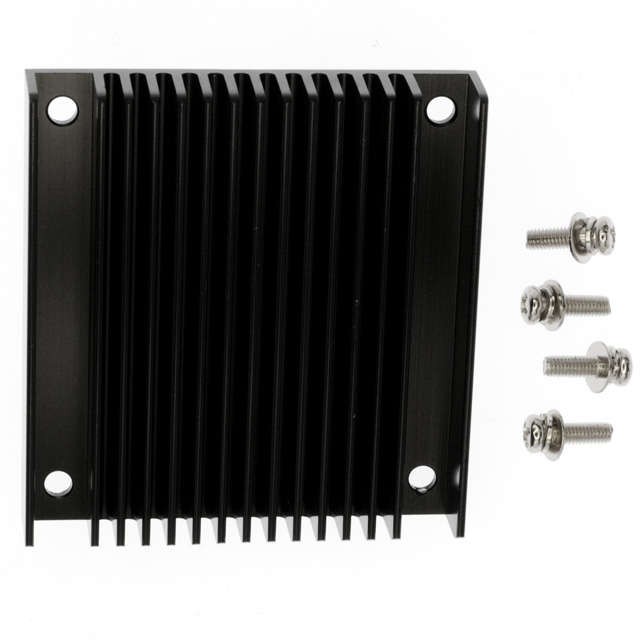

VHS-95: HEATSINK HALF BRICK ALUM BLACK

floor Price/Ceiling Price

US $ 1.31~2.19 / Piece | Get Latest Price
Part Number:
VHS-95
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~25
  • 25~50
  • 50~100
  • 100~250
  • 250~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $2.19
  • $1.94
  • $1.85
  • $1.77
  • $1.7
  • $1.56
  • $1.46
  • $1.34
  • $1.31
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Capacitance : 16.5 pF Series: V-Infinity
Manufacturer: CUI Inc Type: Board Level
Package Cooled: Half Brick DC/DC Converter Attachment Method: Bolt On
Shape: Square Length: 2.40" (61.00mm)
Width: 2.283" (58.00mm) Diameter: -
Height Off Base (Height of Fin): 0.940" (23.88mm) Power Dissipation @ Temperature Rise: -
Thermal Resistance @ Forced Air Flow: 2.1°C/W @ 200 LFM Thermal Resistance @ Natural: 4.7°C/W
Material: Aluminum

Description

Series: V-Infinity
Manufacturer: CUI Inc
Type: Board Level
Package Cooled: Half Brick DC/DC Converter
Attachment Method: Bolt On
Shape: Square
Length: 2.40" (61.00mm)
Diameter: -
Power Dissipation @ Temperature Rise: -
Material: Aluminum
Material Finish: Black Anodized
Width: 2.283" (58.00mm)
Height Off Base (Height of Fin): 0.940" (23.88mm)
Thermal Resistance @ Forced Air Flow: 2.1°C/W @ 200 LFM
Thermal Resistance @ Natural: 4.7°C/W


Features:

• Designed for half-brick converters
• Keeps converters cool with natural convection or forced air
• Includes mounting screws and washers
• Black anodized finish
• Material: extruded 6063P5 aluminum





Specifications

  • size (LxWxH): 2.40x2.26x0.95





  • Parameters:

    Technical/Catalog InformationVHS-95
    VendorCUI Inc
    CategoryFans, Thermal Management
    Attachment MethodBolt On
    Height0.94" (23.89mm)
    MaterialAluminum
    Package CooledHalf Brick DC/DC Converter
    Power Dissipation @ Temperature Rise-
    Thermal Resistance @ Forced Air Flow2.1°C/W @ 200 LFM
    Outline61.00mm x 58.00mm
    Thermal Resistance @ Natural4.7°C/W
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names VHS 95
    VHS95
    102 1489 ND
    1021489ND
    102-1489
