VND600SP-E

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Supply Current : 6 mA
Mounting Style : SMD/SMT
Packaging : Tube
Supply Voltage - Min : 5.5 V
Maximum Operating Temperature : + 150 C
Type : High Side
Package / Case : PowerSO-10
Maximum Power Dissipation : 96100 mW


Features:

·DC SHORT CIRCUIT CURRENT: 25 A
·CMOS COMPATIBLE INPUTS
·PROPORTIONAL LOAD CURRENT SENSE
·UNDERVOLTAGE AND OVERVOLTAGEn SHUT-DOWN
·OVERVOLTAGE CLAMP
·THERMAL SHUT DOWN
·CURRENT LIMITATION
·VERY LOW STAND-BY POWER DISSIPATION
·PROTECTION AGAINST:
·LOSS OF GROUND AND LOSS OF VCC
·REVERSE BATTERY PROTECTION (*)
·IN COMPLIANCE WITH THE 2002/95/EC EUROPEAN DIRECTIVE

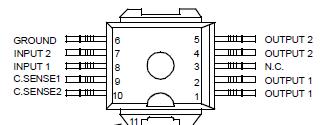

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Supply Voltage	41	V
-VCC	Reverse DC Supply Voltage	-0.3	V
-Ignd	DC Reverse Ground Pin Current	-200	mA
IOUT	Output current	Internally Limited	A
IR	Reverse output current	-21	mA
IIN	Input current	+/-10	mA
VCSENSE	Current sense maximum voltage	-3 +15	V V
VESD	Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF) - INPUT - CURRENT SENSE - OUTPUT - VCC	4000 2000 5000 5000	V V V V
EMAX	Maximum Switching Energy (L=0.13mH; RL=0; Vbat=13.5V; Tjstart=150ºC; IL=40A)	145	mJ
Ptot	Power dissipation (per island) at Tc=25°C	96.1	W
Tj	Junction Operating Temperature	Internally Limited	°C
Tc	Case operating temperature	-40 to 150	°C
Tstg	Storage Temperature	- 55 to 150	°C

Description

The VND600SP-E is a monolithic device made using STMicroelectronics VIPower M0-3 technology. It is intended for driving resistive or inductive loads with one side connected to ground.Active VCC pin voltage clamp protects the device against low energy spikes (see ISO7637 transient compatibility table).

This device VND600SP-E has two channels in high side configuration; each channel has an analog sense output on which the sensing current is proportional (according to a known ratio) to the corresponding load current. Built-in thermal shut-down and outputs current limitation protect the chip from over temperature and short circuit. Device turns off in case of ground pin disconnection.

Parameters:

Technical/Catalog Information	VND600SP-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-10 Exposed Bottom Pad
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5.5 V ~ 36 V
On-State Resistance	30 mOhm
Current - Output / Channel	-
Current - Peak Output	40A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VND600SP E VND600SPE
