VSC7927

Features: • Rise Times of Less Than 100ps• High Speed Operation (Up to 2.5 Gb/s NRZ Data)• Differential or Single-Ended Inputs• Single Supply• ECL-Compatible Clock and Data Inputs• Direct Access to Modulation and Bias FETs• Data Density Monitors• On-...

product image

VSC7927 Picture
See larger image
SeekIC No. : 004543401 Detail

VSC7927: Features: • Rise Times of Less Than 100ps• High Speed Operation (Up to 2.5 Gb/s NRZ Data)• Differential or Single-Ended Inputs• Single Supply• ECL-Compatible Clock and ...

VSC7927 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VSC7927
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Rise Times of Less Than 100ps
• High Speed Operation (Up to 2.5 Gb/s NRZ Data)
• Differential or Single-Ended Inputs
• Single Supply
• ECL-Compatible Clock and Data Inputs
• Direct Access to Modulation and Bias FETs
• Data Density Monitors
• On-Chip Reclocking Register
• On-Chip Mux for Clocked or Non-clocked Applications
• On-Chip 50Ω Input Termination: Clock and Data


Application

• SDH/SONET @ 622Mb/s, 1.244Gb/s, 2.488Gb/s
• Full Speed Fibre Channel (1.062Gb/s)


Pinout

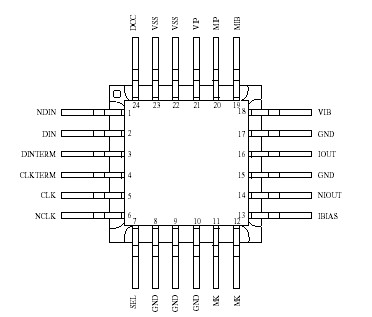

Connection Diagram


Specifications

Symbol
Rating
Limit
VSS
Negative Power Supply Voltage
VCC to -6.0V
TJ
Maximum Junction Temperature
-55°C to + 125°C
TSTG
Storage Temperature
-65°C to +150°C



Description

The VSC7927 is a single 5V supply, 2.5 Gb/s laser diode driver with direct access to the laser modulation and bias FETs. Laser bias and modulation currents are set by external components allowing precision monitoring and setting of the current levels. Data density outputs are provided to allow the user to adjust the laser bias in high unbalanced data applications. Clock and data inputs are differentially terminated to 50Ω.
