Product Details

Description



Features:

Performance
• 2.7~3.6-volt write (program and erase) operations
• Fast write operation
− Sector erases time: 0.4 Sec (typical)
− Chip erases time: 30Sec (typical)
− Byte/Word programming time: 7/9 s (typical)
• Read access time: 70 ns
• Typical program/erase cycles: 100K
• Twenty-year data retention
• Ultra low power consumption
− Active current (Read): 10 mA (typical)
− Active current (Read while Erase): 21 mA (typical)
− Standby current: 0.2 A (typical)
Architecture
• Sector erase architecture
− Eight 8KB, and sixty-three 64KB sectors
− Top or bottom boot block configurations available
− Supports full chip erase
• Security Sector Size: 256 Bytes
− The Security Sector is an OTP; once the sector is programmed, it cannot be erased
• JEDEC standard byte-wide and word-wide pinouts
• Manufactured on WinStack 0.13m process technology
• Available packages: 48-pin TSOP and 48-ball TFBGA (6x8mm) Software Features
• Compatible with common Flash Memory Interface (CFI) specification
− Flash device parameters stored directly on the device
− Allows software driver to identify and use a variety of different current and future Flash products
• Erase Suspend/Erase Resume
− Suspends erase operations to allow programming in same bank
• End of program detection
− Software method: Toggle bit/Data polling
• Unlock Bypass Program command
− Reduces overall programming time when issuing multiple program command sequences Hardware Features
• Ready/#Busy output (RY/#BY)
− Detect program or erase cycle completion
• Hardware reset pin (#RESET)
− Reset the internal state machine to the read mode
• #WP/ACC input pin
− Write protect (#WP) function allows protection of two outermost boot sectors, regardless of sector protection status
Temperature range
• Extended temperature range (-20 to 85 )
• Industrial devices ambient temperature(-40 to +85)



Pinout

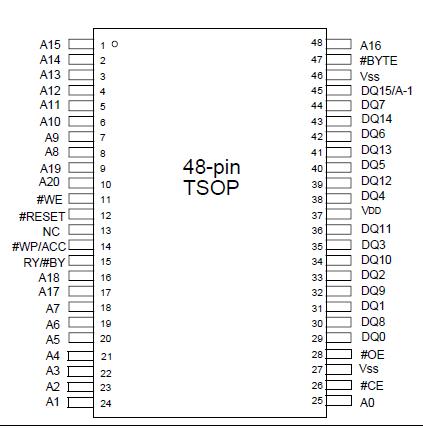

  Connection Diagram


Specifications

PARAMETER RATING UNIT
Storage Temperature Plastic Packages -65 to +150
Ambient Temperature with Power Applied -65 to +125
Voltage with Respect
to Ground
VDD (Note 1) -0.5 to +4.0 V
A9, #OE, and #RESET (Note 2) -0.5 to +11.5 V
#WP/ACC -0.5 to +10.5 V
All other pins (Note 1) -0.5 to VDD +0.5 V
Output Short Circuit Current (Note 3) 200 mA

Notes:
1. Minimum DC voltage on input or I/O pins is -0.5 V. During voltage transitions, input or I/O pins may overshoot VSS to - 2.0 V for periods of up to 20 ns. Maximum DC voltage on input or I/O pins is VDD +0.5 V. During voltage ransitions,input or I/O pins may overshoot to VDD +2.0 V for periods up to 20 ns.
2. Minimum DC input voltage on pins A9, #OE, #RESET, and #WP/ACC is -0.5 V. During voltage transitions, A9, #OE,
#WP/ACC, and #RESET may overshoot VSS to -2.0 V for periods of up to 20 ns. Maximum DC input voltage on pin A9 is +11.5 V which may overshoot to +14.0 V for periods up to 20 ns. Maximum DC input voltage on #WP/ACC is +9.5 V
which may overshoot to +12.0 V for periods up to 20 ns.
3. No more than one output may be shorted to ground at a time. Duration of the short circuit should not be greater than one second.

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute maximum rating conditions for extended periods may affect device reliability.




Description

The W19B320BT/B is a 32Mbit, 2.7~3.6-volt single bank CMOS flash memory organized as 4M x 8 or 2M × 16 bits. The word-wide (× 16) data appears on DQ15-DQ0, and byte-wide (x 8) data appears on DQ7-DQ0. The device can be programmed and erased in-system with a standard 3.0-volt power supply. A 12-volt VPP is not required. The unique cell architecture of the W19B320BT/B results in fast program/erase operations with extremely low current onsumption (compared to other comparable 3- volt flash memory products). The device can also be programmed and erased by using standard EPROM programmers.
