W234

Features: • Differential clock source for Direct Rambus™ memory subsystem for up to 1.6-Gb/s serial data transfer rate• Provide synchronization flexibility: the Rambus® Channel can optionally be synchronous to an external system or processor clock• Power managed output ...

product image

W234 Picture
See larger image
SeekIC No. : 004544484 Detail

W234: Features: • Differential clock source for Direct Rambus™ memory subsystem for up to 1.6-Gb/s serial data transfer rate• Provide synchronization flexibility: the Rambus® Channel...

W234 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W234
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Differential clock source for Direct Rambus™ memory subsystem for up to 1.6-Gb/s serial data transfer rate
• Provide synchronization flexibility: the Rambus® Channel can optionally be synchronous to an external system or processor clock
• Power managed output allows Rambus Channel clock to be turned off to minimize power consumption for mobile applications
• Works with Cypress CY2210-2, CY2210-3, CY2215, W133, W158, W159, W161, and W167B to support Intel® architecture platforms
• Low-power CMOS design packaged in a 28-pin, 173-mil TSSOP package

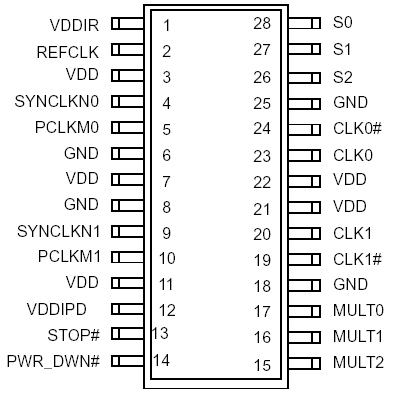

Pinout

Connection Diagram


Specifications

Supply Voltage: ................................. VDD = 3.3V ± 0.165V
Operating Temperature: ...............................  0 to +70
Input Threshold: ..............................................1.5V typical
Maximum Input Voltage: ...................................VDD + 0.5V
Maximum Input Frequency: ...................................100 MHz
Output Duty Cycle: .............................. 40/60% worst case
Output Type:.......................... Rambus signaling level (RSL)


Description



The Cypress W234 provides dual channel differential clock signals for a Direct Rambus memory subsystem. It includes signals to synchronize the Direct Rambus Channel clock to an external system clock but can also be used in systems that do not require synchronization of the Rambus clock.
