W25P010A

Features: · Synchronous operation· High-speed access time: 6/7/8 nS (max.)· Single +3.3V power supply· Individual byte write capability· 3.3V LVTTL compatible I/O· Clock-controlled and registered input· Asynchronous output enable· Pipelined/non-pipelined data output capability· Supports snooze mod...

product image

W25P010A Picture
See larger image
SeekIC No. : 004544519 Detail

W25P010A: Features: · Synchronous operation· High-speed access time: 6/7/8 nS (max.)· Single +3.3V power supply· Individual byte write capability· 3.3V LVTTL compatible I/O· Clock-controlled and registered in...

W25P010A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W25P010A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Synchronous operation
· High-speed access time: 6/7/8 nS (max.)
· Single +3.3V power supply
· Individual byte write capability
· 3.3V LVTTL compatible I/O
· Clock-controlled and registered input
· Asynchronous output enable
· Pipelined/non-pipelined data output capability
· Supports snooze mode (low-power state)
· Internal burst counter supports Intel burst mode & linear burst mode
· Supports 2T/2T mode
· Packaged in 100-pin QFP and TQFP

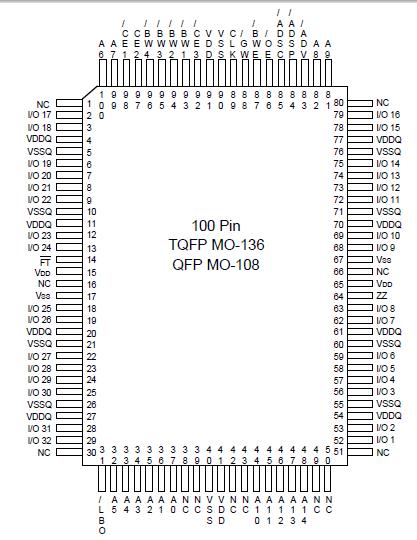

Pinout

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Core Supply Voltage to Vss
-0.5 to 4.6
V
I/O Supply Voltage to VSS
-0.5 to 4.6
V
Input/Output to VSSQ Potential
VSSQ -0.5 to VDDQ +0.5
V
Allowable Power Dissipation
1.0
W
Storage Temperature
-65 to 150
Operating Temperature
0 to +70



Description

The W25P010A is a high-speed, low-power, synchronous-burst pipelined, CMOS static RAM organized as 32,768 ´ 32 bits that operates on a single 3.3-volt power supply. A built-in two-bit burst address counter supports both Pentiumä burst mode and linear burst mode. The mode to be executed is controlled by the pin. Pipelining or non-pipelining of the data outputs is controlled by the

W25P010A support 2T/2T mode whcih will delay one cycle data output in a burst read cycle when the device is deselected by CE2 or CE3 . This mode supports 3-1-1-1-1-1-1-1 in a two-bank, back-toback burst read cycle.
