Features:

• Family of Serial Flash Memories
W25X10: 1M-bit / 128K-byte (131,072)
W25X20: 2M-bit / 256K-byte (262,144)
W25X40: 4M-bit / 512K-byte (524,288)
W25X80: 8M-bit / 1M-byte (1,048,576)
256-bytes per programmable page
Uniform 4K-byte Sectors / 64K-byte Blocks
• SPI with Single or Dual Outputs
Clock, Chip Select, Data I/O, Data Out
Optional Hold function for SPI flexibility
• Data Transfer up to 150M-bits / second
Clock operation to 75MHz
Fast Read Dual Output instruction
Auto-increment Read capability
• Flexible Architecture with 4KB sectors
Sector Erase (4K-bytes)
Block Erase (64K-byte)
Page program up to 256 bytes <2ms
Up to 100,000 erase/write cycles
20-year retention
• Low Power Consumption, Wide
  Temperature Range
Single 2.7 to 3.6V supply
5mA active current, 1A Power-down (typ)
-40° to +85°C operating range
• Software and Hardware Write Protection
Write-Protect all or portion of memory
Enable/Disable protection with /WP pin
Top or bottom array protection
• Space Efficient Packaging
8-pin SOIC 150-mil (W25X10/20/40)
8-pin SOIC 208-mil (W25X40/80)
8-pin PDIP 300-mil (W25X10/20/40/80)
8-pin WSON 6x5-mm (W25X10/20/40/80)



Pinout

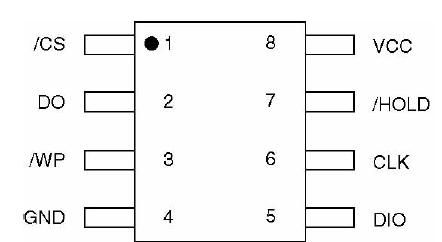

  Connection Diagram


Specifications

PARAMETERS SYMBOL CONDITIONS RANGE UNIT
Supply Voltage VCC   0.6 to +4.0 V
Voltage Applied to Any Pin VIO Relative to Ground 0.6 to VCC +0.4 V
Storage Temperature TSTG   65 to +150 °C
Lead Temperature TLEAD   See Note (2) °C
Electrostatic Discharge Voltage VESD Human Body Model(3) 2000 to +200 V



Description

The W25X10 (1M-bit), W25X20 (2M-bit), W25X40 (4M-bit) and W25X80 (8M-bit) Serial Flash memories provide a storage solution for systems with limited space, pins and power. The 25X series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code download applications as well as storing voice, text and data. The devices operate on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1A for power-down. All devices are offered in space-saving packages.

The W25X10/20/40/80 array is organized into 512/1024/2048/4096 programmable pages of 256-bytes each. Up to 256 bytes can be programmed at a time using the Page Program instruction. Pages can be erased in groups of 16 (sector erase), groups of 256 (block erase) or the entire chip (chip erase). The W25X10/20/40/80 has 32/64/128/256 erasable sectors and 2/4/8/16 erasable blocks respectively. The small 4KB sectors allow for greater flexibility in applications that require data and parameter storage. (See figure 2.)
The W25X10/20/40/80 supports the standard Serial Peripheral Interface (SPI), and a high performance dual output SPI using four pins: Serial Clock, Chip Select, Serial Data I/O and Serial Data Out. SPI clock frequencies of up to 75MHz are supported allowing equivalent clock rates of 150MHz when using the Fast Read Dual Output instruction. These transfer rates are comparable to those of 8 and 16-bit Parallel Flash memories.

A Hold pin, Write Protect pin and programmable write protect, with top or bottom array control features, provide further control flexibility. Additionally, the device supports JEDEC standard manufacturer and device identification.
