Product Details

Description



Features:

· Single 3.6V to 5.5V power supply
· Low power consumption
· Fully static operation
· Low data retention voltage
· Easy to cascade

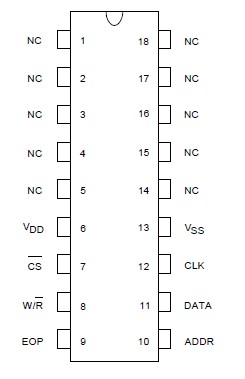

Pinout

Connection Diagram


Specifications

PARAMETER

SYMBOL

RATING

UNIT

Supply Voltage

VDD-VSS

-0.3 to +5.5

V

Input Voltage

VIN

VSS -0.2 to VDD +0.2

V

Output Voltage

VO

VSS to VDD

V

Operating Temperature

TOPR

0 to +70

°C

Storage Temperature

TSTG

-55 to +150

°C




Description

The W55206B is a normal speed, low power CMOS static RAM organized as 128K ´ 1 bit that operates on a single 5V power supply. Manufactured using Winbond's high performance CMOS technology, the W55206B is designed for extensive use in voice recording applications.
