W741L250

Features: · Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V or 4.5V)· Operating frequency up to 1 MHz· Crystal/RC oscillation circuit selectable by code option for system clock· Only low -frequency clock (32.768 KHz) for crystal mode· Memory - 2048 ´ 16 bit program ROM (including 2K...

product image

W741L250 Picture
See larger image
SeekIC No. : 004544938 Detail

W741L250: Features: · Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V or 4.5V)· Operating frequency up to 1 MHz· Crystal/RC oscillation circuit selectable by code option for system clock· Only low -f...

W741L250 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W741L250
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 1.2V to 1.8V (LCD drive voltage: 3.0V or 4.5V)
· Operating frequency up to 1 MHz
· Crystal/RC oscillation circuit selectable by code option for system clock
· Only low   -frequency clock (32.768 KHz) for crystal mode
· Memory
   - 2048 ´ 16 bit program ROM (including 2K ´ 4 bit look   -up table)
   - 128 ´ 4 bit data RAM (including 16 working registers)
   - 24 ´ 4 LCD data RAM
· 21 input/output pins
   - Ports for input only: 2 ports/8 pins
   - Input/output ports: 2 ports/8 pins
   - Port for output only: 1 port /4 pins (high sink current)
   - MFP output pin: 1 pin (MFP)
· Power   -down mode
   - Hold function: no operation (except for oscillator)
   - Stop function: no operation (including oscillator)
· Five types of interrupts
   - Three internal interrupts (Divider 0, Timer 0, Timer 1)
   - Two external interrupts (Port RC and INT pin)
· LCD driver output
   - 24 segment ´ 4 common
   - Static, 1/2 duty (1/2 bias), 1/3 duty (1/2 or 1/3 bias), 1/4 duty (1/3 bias) driving mode can be selected
   - LCD driver output pins can be used as DC output port by code option


Pinout

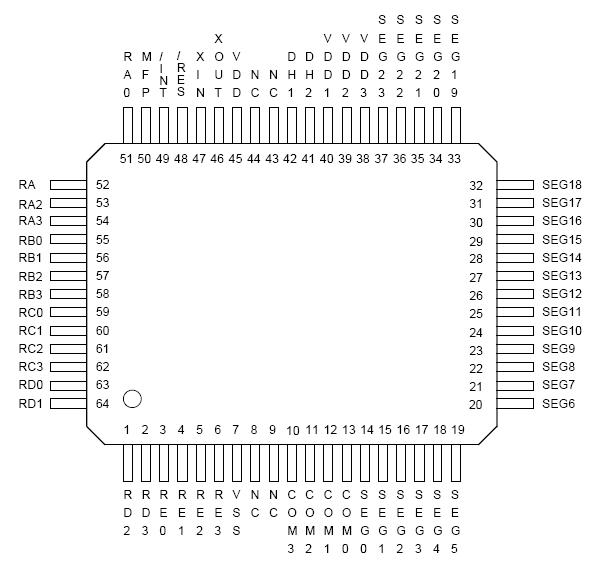

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W741L250 is a high-performance 4-bit microcontroller (mC) that provides an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, a divider, a 24 ´ 4 LCD driver, and five 4-bit I/O ports (including 1 output port for high sink current). There are also five interrupt sources and 8-level subroutine nesting for interrupt applications. The W741L250 operates on very low voltage and very low current and has two power reduction modes, hold mode and stop mode, which help to minimize power dissipation.

The W741L250 is suitable for handheld games, watches, clocks, speech synthesis LSI controllers, and other products.
