W742C814

Features: • Operating voltage: 2.4V - 5.5V• Dual-clock operation mode (Connect to 32768 Hz crystal only) Fslow oscillator: 32768 Hz OSC Ffast oscillator: PLL (Phase Lock Loop) output enable• Memory − 4096 x 16 bits program ROM (including 16K x 4 bit look-up table) − 1...

product image

W742C814 Picture
See larger image
SeekIC No. : 004544943 Detail

W742C814: Features: • Operating voltage: 2.4V - 5.5V• Dual-clock operation mode (Connect to 32768 Hz crystal only) Fslow oscillator: 32768 Hz OSC Ffast oscillator: PLL (Phase Lock Loop) output ena...

W742C814 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W742C814
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage: 2.4V - 5.5V
• Dual-clock operation mode (Connect to 32768 Hz crystal only)
    Fslow oscillator: 32768 Hz OSC
    Ffast oscillator: PLL (Phase Lock Loop) output enable
• Memory
   − 4096 x 16 bits program ROM (including 16K x 4 bit look-up table)
   − 1024 x 4 bits data RAM (including 16 nibbles x 16 pages working registers)
   − 32 x 4 LCD data RAM
• 20 input/output pins
   − Port for input only: 1 ports/4 pins (RC)
   − Input/output ports: 3 ports/12 pins (RA, RB & RD)
   − High sink current output port for LED driving: 1 port /4 pins (RE)
• Power-down mode
   − Hold function: no operation (excluding Fslow and Fosc oscillator)
   − Stop function: no operation (Fslow and Fosc oscillator are stopped)
   − Dual-clock slow operation mode: system is operated by 32768 Hz (FOSC = Fslow and Ffast stopped)
• Five types of interrupts
   − Four internal interrupts (Divider0, Divider1, Timer 0, Timer 1)
   − One external interrupts (RC Port)
• LCD driver output
   − 32 segments x 4 commons
   − 1/4 duty 1/3 bias driving mode
• MFP output pin
   − Output is software selectable as modulating or non-modulating frequency
   − Works as frequency output specified by Timer 1
• DTMF output pin (PLL should be enable in this function)


Pinout

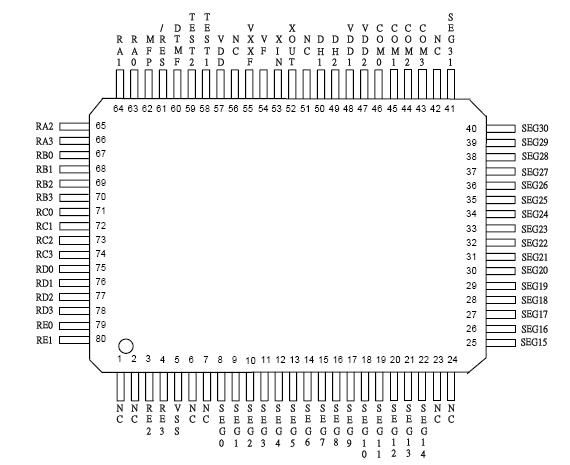

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W742C814 is a high-performance 4-bit micro-controller (C) that provides an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers (for two oscillators) in dual-clock operation, a 32 * 4 LCD driver, five 4-bit I/O ports (including 1 output port for LED driving), and one channel DTMF generator. There are also five interrupt sources and 8-levels subroutine nesting for call subroutine or interrupt applications. The W742C814 operates on very low current and has two power reduction modes, that is the dual-clock slow operation and STOP mode, which help to minimize power dissipation.
