Features:

• Fully static design 8-bit CMOS microcontroller
• Wide supply voltage of 2.4V to 5.5V
• Industrial temperature grade -40 − 85
• 256 bytes of on-chip scratchpad RAM
• 8 KB electrically erasable/programmable Flash EPROM
• 64 KB program memory address space
• 64 KB data memory address space
• Four 8-bit bi-directional ports
• One extra 4-bit bit-addressable I/O port, additional INT2INT3 (available on 44-pin PLCC package)
• Three 16-bit timer/counters
• One full duplex serial port (UART)
• Watchdog Timer
• Eight sources, two-level interrupt capability
• EMI reduction mode
• Built-in power management
• Code protection mechanism
• Packages:
   − DIP 40: W78IE52
   − PLCC 44: W78IE52P



Pinout

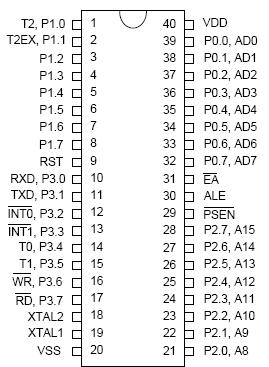

  Connection Diagram


Specifications

PARAMETER SYMBOL MIN. MAX. UNIT
DC Power Supply VDD-VSS -0.3 +7.0 V
Input Voltage VIN VSS -0.3 VDD +0.3 V
Operating Temperature TA -40 85 °C
Storage Temperatute Tst -55 +150 °C



Description

The W78IE52 is an 8-bit microcontroller which can accommodate a wider frequency range with low power consumption. The instruction set for the W78IE52 is fully compatible with the standard 8051. The W78IE52 contains an 8K bytes Flash EPROM; a 256 bytes RAM; four 8-bit bi-directional and bitaddressable I/O ports; an additional 4-bit I/O port P4; three 16-bit timer/counters; a hardware watchdog timer and a serial port. These peripherals are supported by eight sources two-level interrupt capability. To facilitate programming and verification, the Flash EPROM inside the W78IE52 allows the program memory to be programmed and read electronically. Once the code is confirmed, the user can protect the code for security.

The W78IE52 microcontroller has two power reduction modes, idle mode and power-down mode, both of which are software selectable. The idle mode turns off the processor clock but allows for continued peripheral operation. The power-down mode stops the crystal oscillator for minimum power consumption. The external clock can be stopped at any time and in any state without affecting the processor.
