Features:

2.1 General
Support ISA bus
Programmable configuration settings
48 MHz crystal inputs
2.2 Smart Card Interface
ISO-7816 compliant
PC/SC T=0, T=1 compliant
16-byte transmitter FIFO and 16-byte receiver FIFO
FIFO threshold interrupt to optimize system performance
Programmable transmission clock frequency
Versatile baud rate configuration
UART-like register file structure
2.3 Memory Stick Interface
q Memory Stick Standard Format Specifications ver. 1.3 compliant
Support interrupt polling transmission
Support FIFO threshold interrupt to optimize system performance
Automatic clock halt to prevent underrun/overrun
16 MHz interface clock
2.4 SD Memory Card Interface
SD Memory Card Specifications: Part 1 PHYSICAL LAYER SPECIFICATION Version 1.0 Compliant
Support interrupt polling transmission
Support FIFO threshold interrupt to leverage system performance
24 MHz interface clock
2.5 Package
 48-pin LQFP



Pinout

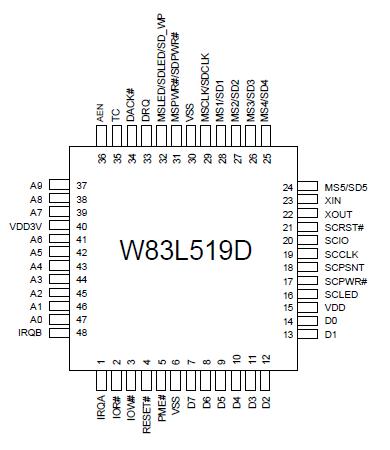

  Connection Diagram


Description

W83L519D is Winbond's innovative solution to a new class of storage devices for IA Noetebook, Desktop PC and PC system-related products. It incorporates a security Application: Smart Card Interface and two most promising compact storage interfaces: Memory Stick interface, and Secure Digital Memory Card interface in IT era.

To cater boundless IT implementation possibilities, W83L519D can be configured to interface with host through ISA bus. Base on the ISA interface, one Smart Card Interface port and an optional Memory Stick/SD memory Interface ports are provided. The kind of versatility allows user to design very cost-effective products in a very flexible way.

The whole chip of W83L519D operates at voltage level of 3.3 V except Smart Card Interface port's I/O pins and ISA bus interface that are at 5 V to be compatible with mainstream Smart Card implementations.

Advanced power management feature further optimizes power consumption whether in operation or in power down mode.

W83L519D comes as a 48-pin LQFP streamline package. Combining with powerful functions, effective power management, and versatile configurability, this integrated media reader offers a perfect approach for design of storage device of IT products.

The trademarks and intellectual property rights of Memory Stick belong to SONY Corporation. Information check: http://www.memorystick.org/

The trademarks and intellectual property rights of Secure Digital belong to SD Group. Information check: http://www.sdcard.org/
